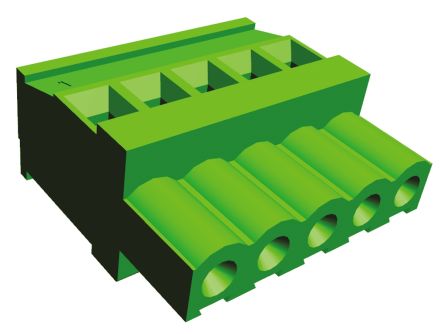

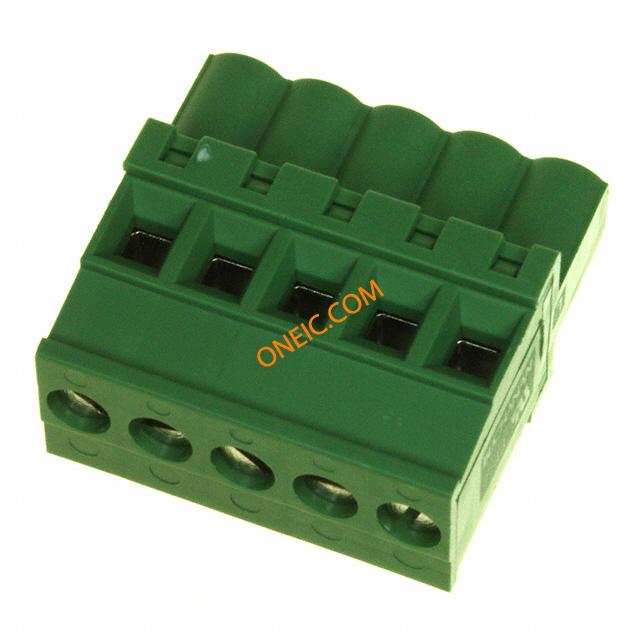

284040-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 5 POS 5mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks PLUG 5P VERT 5mm Terminal Block Connectors TERM BLOCK PLUG 5POS 270DEG 5MM Conn Terminal Block F 5 POS 5mm Screw ST Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5mm 节距 5 路 公 绿色 直 插头, 面板安装, 焊接端接 TERMI-BLOK VERTICAL PLUG STACK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Green | 深度 | 12.5 mm |
| 间距 | 5 mm | 宽度 | 12.5mm |
| 高度 | 25 mm | 长度 | 25mm |
| 材料（通用） | 尼龙 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 出线方向 | 侧 |
| 引脚样式 | Side | 螺钉尺寸 | M3 |
| 导线线规 | 12-30 AWG | 方向 | 直 |
| 端接方式 | Screw | 第二连接器 | 是 |
| 外壳颜色 | Green | 安装类型 | Cable Mount |
| 连接器类型 | Plug (left-hand) | 接触镀层 | Tin |
| 法兰特征 | Without | 安装样式 | Through Hole |
| 排数 | 1 | 螺丝材料 | Brass |
| 插入件材料 | 磷青铜 | 插头进线方向 | 270° |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 25 mm | 包装数量 | 150 |
| 端接排数 | 焊接 | 连接器间距 | Side |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Plug, Female Sockets | 端子螺钉表面处理 | 镍 |
| 螺纹/螺钉/孔尺寸 | 黄铜 | 中心触点材料 | 5.00 [0.197] |
| 螺钉材料 - 镀层 | Nickel | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | Buchanan | 产品特性 | Retention Latches (Non-Wire Side) |
| 制造商全称 | Buchanan | 产品子类型 | Connector |
| 侧面可堆叠 | Yes | 层数 | 1 |
| 互连系统 | Without | 每层位数 | 5 |
| 并排堆叠 | 是 | ||
