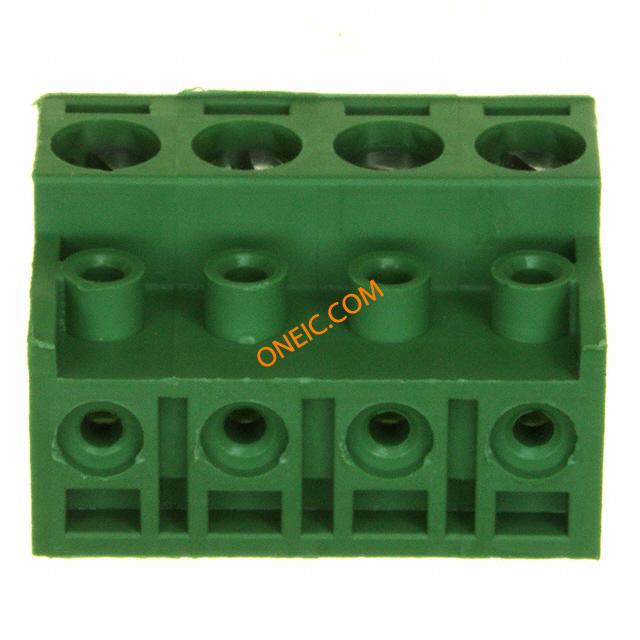

282830-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Terminal Block F 4 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact Pluggable Terminal Blocks TERMI-BLOK PLUG 90&1 Terminal Block Connectors TERM BLOCK PLUG 4POS 90DEG 5MM Conn Terminal Block F 4 POS 5mm Screw Straight/Right Angle Cable Mount 12A/Contact Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end Plug 4 Position 5 mm Pitch 30-14 AWG Euro Style Terminal Block TERMI-BLOK PLUG 90&180 4P. 5 |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 150 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 12A | 电压 | 300V |
| 视角 | 90° (Bottom)/ 180° (Side) | 额定电压 | 300 VAC |
| 供电电压 | 300 | 额定交流电压 | 300 |
| 跳闸电流 | 12 | 最大额定电流 | 12 A |
机械参数
| 颜色 | Green | 间距 | 5 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 绿色 | 出线方向 | 侧 |
| 引脚样式 | Side | 螺钉尺寸 | M3 |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 第二连接器 | 是 | 外壳颜色 | Green |
| 安装类型 | Cable Mount | 连接器类型 | Plug |
| 接触镀层 | Tin | 法兰特征 | Without |
| 排数 | 1 | 螺丝材料 | Brass |
| 插入件材料 | 磷青铜 | 插头进线方向 | 90° |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 150 | 电缆端接方式 | 90° |
| 连接器间距 | Side | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Plug for Unshrouded Header |
| 端子螺钉表面处理 | 镍 | 螺纹/螺钉/孔尺寸 | 黄铜 |
| 中心触点材料 | 5.00 [0.197] | 每层极数 | 4 |
| 螺钉材料 - 镀层 | Nickel | 线规或范围 - AWG | 30-14 |
| 线规或范围 - mm² | 14 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Side Stacking | 制造商全称 | Buchanan |
| 产品子类型 | Connector | 侧面可堆叠 | Yes |
| 层数 | 1 | 互连系统 | Without |
| 每层位数 | 4 | 并排堆叠 | 否 |
