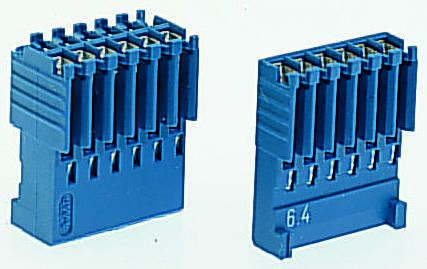

281792-8
| 制造商 | |
| 描述 | Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts PLUG HE14 IDC 180 2X8 P AWG28-26 16 way double row HE14 IDT cable socket Headers & Wire Housings PLUG HE14 IDC 180 2X8 P AWG 28-26 Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Loose Piece Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE SOCKET IDT, 2ROW, 16WAY TE Connectivity AMPMODU HE14 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 壳体 PLUG HE14 IDC 180 2X8 P AWG 28-26 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :HE, NFC |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMPMODU HE14 Series | 工作电压 | :500V |
| 接触电阻 | :30mohm | 最大额定电流 | :3A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 间距 | 2.54 mm | 宽度 | :7.54mm |
| 长度 | :17.8mm | 重量 | 0.0365 |
| 材料（通用） | :Glass Filled Polyester | 包装方式 | Bulk |
| 导线类型 | Discrete | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | :IDC |
| 触头类型 | Receptacle | 引脚间距 | :2.54mm |
| 柱间距 | 2.54 [.100] | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 封装形式 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | PBT - GF | 包装数量 | Loose Piece |
| 电缆端接方式 | IDC | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Blue |
| 配接方向 | Without | 触点数 | 16 |
| 接触件端接 | :IDC / IDT | 绝缘直径 | 1.00 [0.039] |
| 位数 | 16 | 线规或范围 - mm² | 0.08-0.15² [28-26] |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | HE13 / HE14 | 预加载 | Yes |
| 编码、键控 | No | 产品子类型 | Housing |
| 连接类型 | Wire | 适用产品/相关产品 | Centerline Receptacle |
环境参数
| 插拔次数 | :30 | 工作温度 | :105°C |
