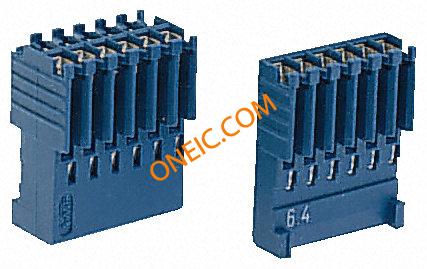

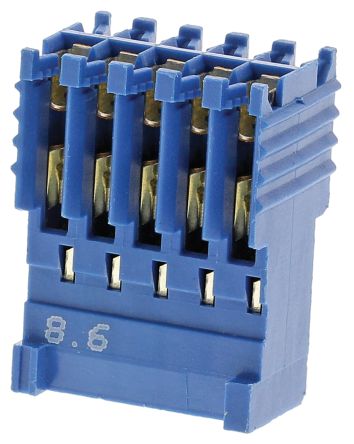

281792-5
| 制造商 | |
| 描述 | Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts PLUG HE14 IDC 180 2X5 P AWG28-26 10 way double row HE14 IDT cable socket Headers & Wire Housings PLUG HE14 IDC 180 2X5 P AWG 28 Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Loose Piece Product Highlights:ConnectorNo PreloadedHousing Gender = Connector - ReceptacleAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU HE14 系列 2 行 2.54mm 节距 10 路 直 母 电缆安装 PCB 壳体 PLUG HE14 IDC 180 2X5 P AWG 28-26 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 |
机械参数
| 间距 | 2.54 mm | 高度 | 5.1 mm [ 5.1 in ] |
| 长度 | 13.5 | 包装方式 | Bulk |
| 导线类型 | Discrete | 壳体颜色 | 蓝色 |
| 导线线规 | 26-28 AWG | 方向 | 直 |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Receptacle |
| 柱间距 | 2.54 [.100] | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 封装形式 | Receptacle | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PBT - GF |
| 包装数量 | Loose Piece | 面板安装类型 | 不带 |
| 电缆端接方式 | IDC | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 10 | 绝缘直径 | 1.00 [0.039] |
| 位数 | 10 | 安装孔直径 | 不带 |
| 线规或范围 - mm² | 0.08-0.15² [28-26] | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | HE13 / HE14 | 预加载 | Yes |
| 编码、键控 | No | 产品子类型 | Housing |
| 连接类型 | Wire | 适用产品/相关产品 | Centerline Receptacle |
