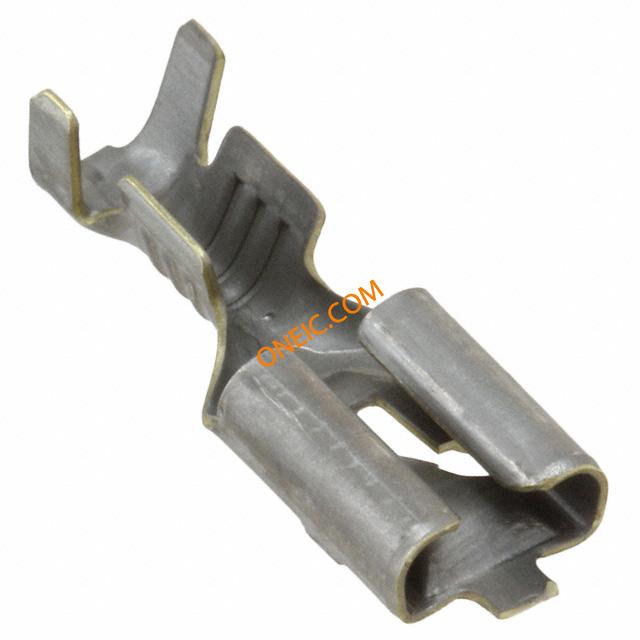

280919-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 15-20AWG SKT 16mm 5.6mm Tin Strip Terminals FAST FAST REC Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS RECPT 15-20AWG 0.187 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:ReceptacleTab Fit = 4.75 x 0.81 mmWire Range = 0.50-1.50² [20-15.5] mm [AWG]Insulation Diameter = 2.30-3.30 [.091-.129] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONN QC RCPT 15-20AWG 0.187 FF 187 REC 0.5-1.5MM2 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A111139CT |
| 标准包装规格 | 8,000 | 标准包装数量 | 24,000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大电压 | 250 | 最大频率 | Single |
| 开关功能 | 快速断开, 快速断开 | ||
机械参数
| 表面处理 | Pre-Tin | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.252" (6.40mm) | 导线线规 | 15-20 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Single or Multiple |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 操作力 | 4 |
| 厚度（最大） | 0.25 [0.010] | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .187 | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | With |
| 端接样式 | 母端 | 适用端子尺寸 | 2.3 – 3.3 mm [ .091 – .129 in ] |
| 绝缘直径 | 2.30-3.30 [.091-.129] | 绝缘材料 - 类型 | No |
| 镀层厚度（通用） | .8 | 总厚度 | .25 mm [ .01 in ] |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 堆叠高度（配合） | 1.2 | 线规或范围 - mm² | 0.50-1.50² [20-15.5] |
产品信息
| 连接器性别 | Female | 系列 | 250 |
| 产品子类型 | Receptacle | ||
环境参数
| 工作温度 | -30 – 105 | ||
