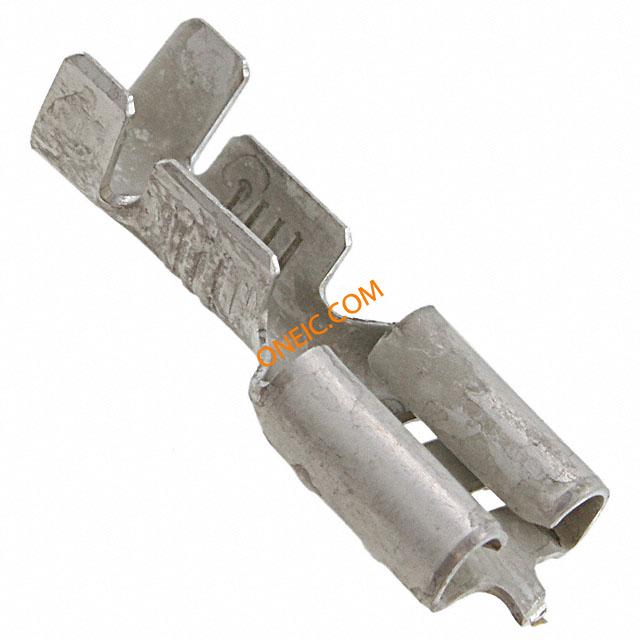

点击放大查看
280001-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 13-17AWG RCP 19mm 7.8mm Tin Strip Terminals RECPT 6.35 x 0.81 mm FASTON Uninsulated Receptacles & Housings CONN RCPT STR 17-13.5AWG .250 Receptacle terminal,FASTON 250,AWG 17-13 Receptacle terminal FASTON (REEL) Quick Disconnect Terminal 13-17AWG RCP 19mm 7.8mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONTACT, SOCKET, 15AWG Terminal: flat; 6.3mm; 0.8mm; female; 1÷2.5mm2; crimped; for cable TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FAST 250 REC 0.3-0.8MM2 0.40X18.60 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107186CT |
| 产品类别 | Terminals | 标准包装数量 | 7,000 |
| 工厂包装数量 | 21000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 量程（°/s） | :TE - FASTON 250 Series | 连接器类型 - 电压输入 | Without |
机械参数
| 宽度 | 6.3mm | 表面处理 | Tin |
| 长度 | 19 mm | 重量 | 0.02 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.8mm |
| 电缆类型 | Stranded | 绝缘类型 | Not Insulated |
| 插片长度 | 0.303" (7.70mm) | 导线线规 | 17-13 |
| 端接方式 | Crimp | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 6.35 mm x 0.81 mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Quick Disconnect Terminal |
| 接触镀层 | Tin | 安装样式 | for cable |
| 线束直径 | 2.5 mm | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 触头材料 | Brass | 套圈材料 | straight |
| 绝缘颜色 | :Uninsulated | 总长度 | Premier |
| 刀片材料 | :Brass | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 3.00-4.29 [.118-.169] | 绝缘材料 - 材质 | :Uninsulated |
| 线规或范围 - AWG | :17AWG | 线规或范围 - mm² | 1.00-2.50² [17-13.5] |
| 触点材料 - 镀层 | tinned | 第二连接器安装特性 | Yes |
产品信息
| SPG | 7000 | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | 单元数量 | 7000 |
