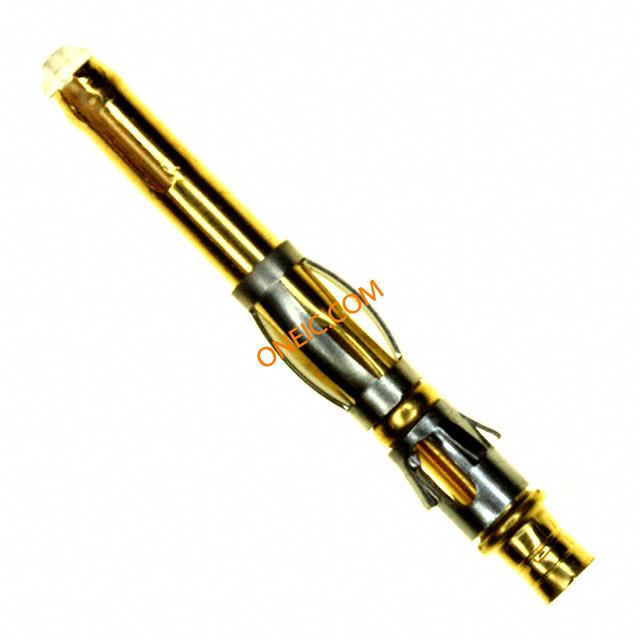

226537-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Multiple Coaxial Contacts (COAXICON) CONN PIN 26/28/30AWG SOLID GOLD RF Connectors / Coaxial Connectors SUB MIN PIN MULTI MATE SUB MIN PIN MULTI MATE |
| 分类 |
商业参数
| 产品 | Contacts | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 阻抗 | Non-Matched | 连接器阻抗 | 不匹配 |
机械参数
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Bulk | 电缆类型 | Solid, Stranded |
| 导线线规 | 26-30 AWG | 本体表面处理 | Nickel |
| 端接方式 | Crimp | 触头类型 | Coaxial |
| 插针或插孔 | Pin | 外壳镀层 | Gold (30) over Nickel (50) |
| 连接器类型 | Connector Circular | 接触镀层 | Gold Over Nickel |
| 外壳材料（壳体） | Brass per MIL-C-50 | 触头材料 | Beryllium Copper |
| 壳体材料 | 黄铜 | 主要材料 | 直式 |
| 端接样式 | Solder | 导体材料 | Beryllium Copper per QQ-C-533 |
| 接触件端接 | Crimp | 介电材料 | TPX |
| 镀层厚度（通用） | 30µin (0.76µm) | 中心触点表面处理 | 金 |
| 中心触点镀层工艺 | Gold (30) over Copper (100) | 中心触点材料 | 铍铜合金 |
| 供应商器件封装 | CPC, G Series, M Series, Metrimate | 接触镀层厚度 | 30 |
| 触点材料 - 配合 | Without | 线规或范围 - mm² | 0.05-0.15 [30-26] |
产品信息
| 备注 | A ferrule is required for each pin and socket.; Extraction Tool No. 305183 | 类型 | Machined |
| 连接器性别 | PIN | 制造商全称 | AMP |
| 产品子类型 | Contact | 连接类型 | Twisted Pair |
