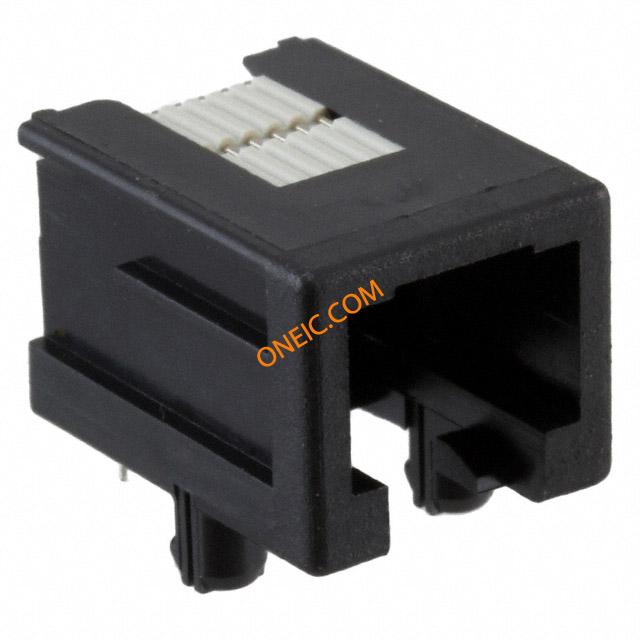

215876-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port T/R Cat 3 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 6P6C Modular Connectors / Ethernet Connectors 6/6 POS SIDE ENTRY Conn RJ-25 F 6 POS 2.54mm Solder RA Thru-Hole 6 Terminal 1 Port T/R Cat 3 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ25Number of Positions = 6Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO JACK, MODULAR, W/O PANEL STOP, 6/6 ModularSocket6/6 Socket; RJ12; PIN:6; low profile; Pin layout:6p6c; THT; on PCBs Jack, 6/6, PCB installation, 215876-1, TE Connectivity TE Connectivity 直角 母 RJ 连接器 , Cat3, 无屏蔽, 通孔型 6/6 PCB MOD.JACK SE |
| 分类 |
商业参数
| 其他名称 | A105007CT | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 800 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| LED | Without | 连接器类型 - 电压输入 | :Cat3 |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 11.50 [0.453] | 重量 | 0.002 |
| LED颜色 | Does Not Contain LED | 锁定类型 | Standard |
| 包装方式 | Tape & Reel (TR) | 屏蔽 | Unshielded |
| 方向 | 90° Angle (Right) | 屏蔽类型 | No |
| 端接方式 | Solder | 反向插孔 | No |
| 安装类型 | Through Hole | 卡扣方向（或“接线片方向”） | Down |
| 连接器类型 | RJ25 | 接触镀层 | Gold (50) over Nickel (50) |
| 法兰特征 | No | 接地类型 | Without |
| 安装样式 | Thru Hole | 排数 | 1 |
| 电路板厚度 | 1.57 [0.062] | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester (PBT) |
| 包装数量 | Tape Mounted on Reel | 面板安装类型 | Without |
| 尺寸/外形 | see | 连接器 - 电缆 | socket |
| 端接样式 | Solder | 触点数 | 6 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 6 |
| 电缆未暴露长度 | 3.20 [0.126] | 第一连接器安装特征 | 6p6c |
产品信息
| SPG | 400 | 备注 | On any modular jack, Terminal No. 1 is the terminal to the extreme left as you |
| 类型 | RJ-25 | 连接器性别 | F |
| 系列 | :MRJ21 | 产品特性 | Board Lock |
| 端口样式 | Single | USOC 编码 | RJ25 |
| 编码、键控 | No | 产品子类型 | Jack |
| 端口数 | 1 | 单元数量 | 1 |
| 插孔配置 | 1 x 1 | 性能类别 | Cat 3 |
| 位置/触点数量 | 6p6c (RJ11, RJ12, RJ14, RJ25) | ||
