点击放大查看

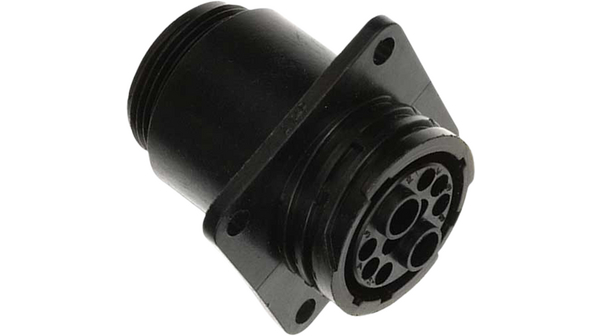

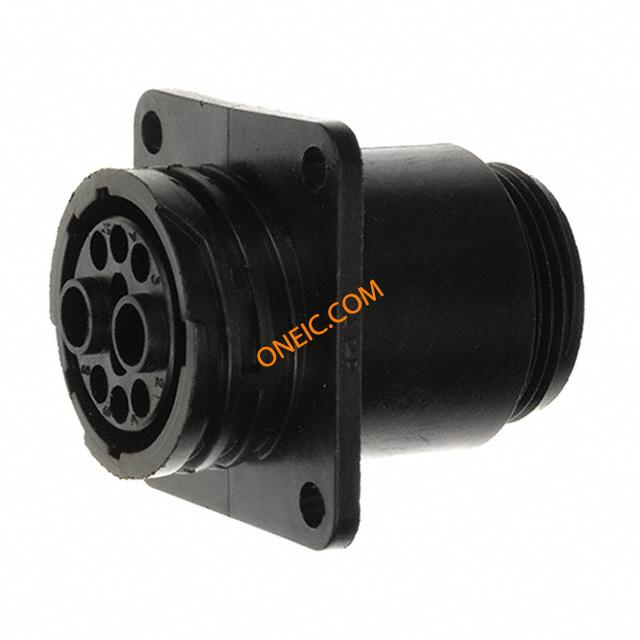

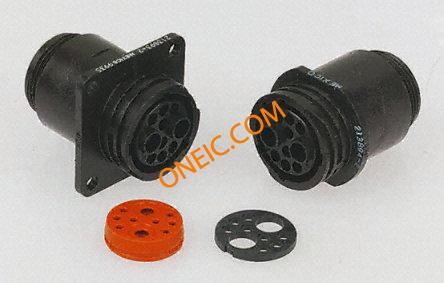

213893-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Sealed CPC SKT 10 POS ST Panel Mount 10 Terminal 1 Port CPC Connectors CONN RECEPT CPC 10POS REV SER 6 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector RECP SQRE REV 17-10 Conn Sealed CPC SKT 10 POS ST Panel Mount 10 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 10ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, REV CPC6, 10WAY ConnectorHousing;CPCReceptacle;10Pos.;Sz.17;Series6;PanelMnt;RevSex Receptacle CPC6 Poles=10, accepts female contacts / with flange / sealed, 213893-2, TE Connectivity TE Connectivity 10路 面板安装 直向 连接器 插座 CPC RECPT SEALED SIZE 17-10 |
| 分类 |
商业参数
| 商标名 | CPC Series 6 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :ASAE, NEMA, SAE, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 8 | 最大额定电流 | :45A |
机械参数
| 颜色 | Black | 深度 | 36.45 mm |
| 高度 | 36.45 mm | 密封型 | Yes |
| 重量 | 0.022 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 2Power/8Signal |
| 触点尺寸 | 16 (8), 2 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 外壳镀层 | Elastomer | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 插入角度 | :17-10 | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 42.55 mm |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Female |
| 连接器颜色 | :Black | 配接方向 | Keyed |
| 触点数 | 10 | 绝缘直径 | 3.81 â 6.73 [0.150 â 0.265] |
| 位数 | 10 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Nylon, Glass Filled | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Reverse | 外壳尺寸-插入件（转换至） | 17-10 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Sealed CPC |
| 连接器性别 | RCP | 系列 | Series 6 |
| 产品特性 | ReverseGender | 预加载 | No |
| 外设 | Gray | 制造商全称 | Series6 |
| 产品子类型 | Connector | 射频系列/标准 | 213893 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 密封等级 | Peripheral | NEMA 机架尺寸 | :IP65 |
| 防护等级 | IP65 | 工作温度 | :125°C |
