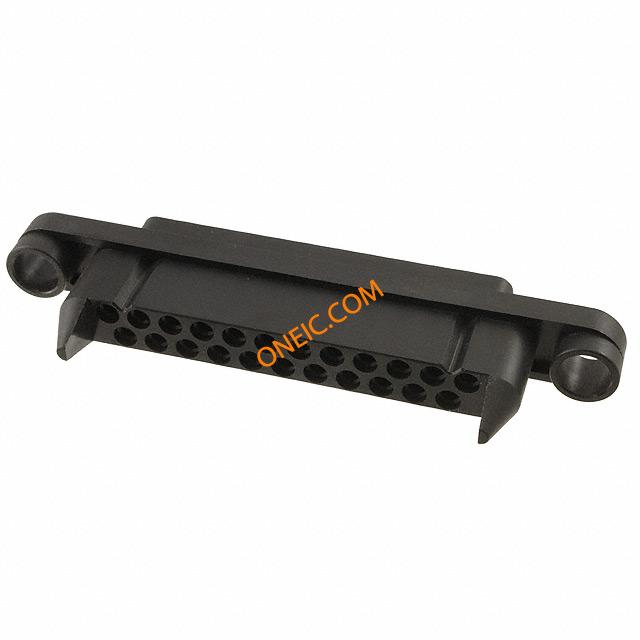

213766-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 23 POS 5mm Crimp ST Panel Mount Metrimate Connectors CONN RECEPT 23 POS METRIMATE Pin & Socket Connectors METRIMATE 23 POS REC 213766-1 Conn Housing RCP 23 POS 5mm Crimp ST Panel Mount Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE,23 POS RECPT HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已认证, 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR16455 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 供电电压 | 600 | 最大额定电流 | 14 A |
机械参数
| 颜色 | Black | 间距 | 5 mm |
| 宽度 | 1.52 | 长度 | 4.842 |
| 材料（通用） | 聚酯 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | 绞线 |
| 本体尺寸 | .031 – .091 in, .8 – 2.3 mm | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing | 排数 | 2 |
| 连接器样式 | Drawer | 连接器用途 | Drawer |
| 壳体材料 | Thermoplastic - GF | 安装特性 | Without |
| 包装数量 | 75 | 面板安装类型 | 带有 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 传感器连接器 | Without | 触点数 | 23 |
| 位数 | 23 | 中心触点表面处理 | 5.08 |
| 兼容外壳尺寸（如TM-700等） | 母端护套 | 典型触点布局 | 同轴 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | M |
| 产品特性 | Guide Pin | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 抽屉总数 | In-Line | 其他规格 | No |
环境参数
| 工作温度 | -55 – 130 °C [ -67 – 266 °F ] | ||
