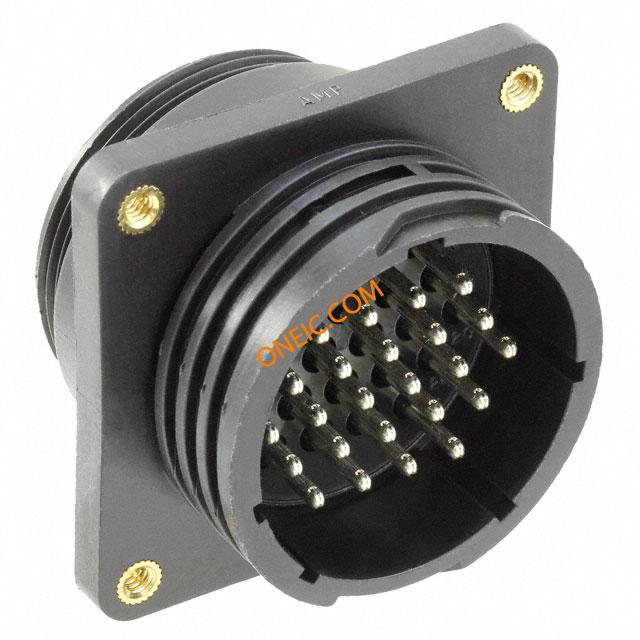

213588-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 24 POS Solder ST Thru-Hole 24 Terminal 1 Port Standard Circular Connector CPC RCPT SZ 23-24 W/ 12 CPC Connectors CONN CPC RCPT 24POS W/PINS PCB CPC RCPT SZ 23-24 W/THRD INSRT |
| 分类 |
商业参数
| 交货时间 | 63 Days | 子类别 | Connector Circular |
| 产品类别 | Standard Circular Connector | 标准包装数量 | Trays |
| 工厂包装数量 | 12 | ||
合规参数
| RoHS | No | 合规性 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 输入端 | 1.57 | 额定电压 | 600VAC/DC |
| 防溅等级 | 无 | 最大额定电流 | 13A |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 密封型 | No | 外形尺寸(长x宽) | 23 |
| 包装方式 | Tray | 外壳尺寸 | 23 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Solder | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 插针或插孔 | Pin | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Tin-Lead over Nickel | 紧固类型 | Threaded |
| 安装样式 | Panel | 引脚数 | 0 |
| 外壳材料（壳体） | 母端, 母端 | 插入件材料 | Brass |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 包装数量 | 12 | 面板安装类型 | Square Flange |
| 端接样式 | Printed Circuit Board | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 24 |
| 位数 | 24 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 带有 | 外壳材料及表面处理 | Thermoplastic |
| 螺纹/螺钉/孔尺寸 | 4-40 | 端子柱长度 | 5.59 [0.220] |
| 接触镀层厚度 | 100µin (2.54µm) | 第一连接器安装类型 | Panel |
产品信息
| 备注 | Posts are 0.43 [.017] offset from centerline of contacts. All posts must be ori | 类型 | CPC |
| 连接器性别 | RCP | 系列 | CPC |
| 钥匙类型 | A | 预加载 | Yes |
| 产品子类型 | Connectors | 其他规格 | Without |
| 适用产品/相关产品 | 213588-2 | ||
