点击放大查看

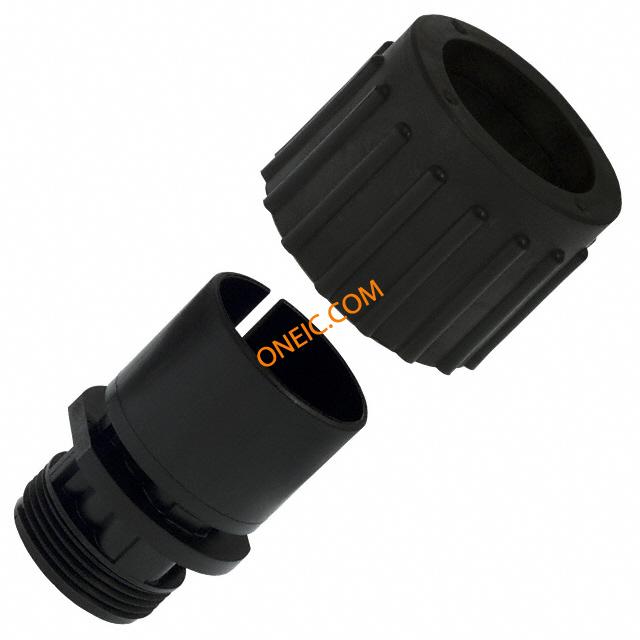

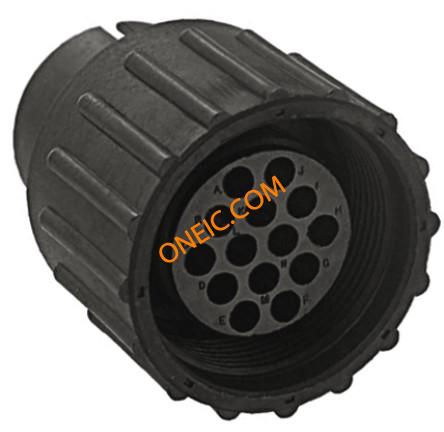

213571-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Plug Kit 14 POS Polyamide Black CPC Connectors CONN PLUG CPC 14POS REVERSE ConnectorHousing,CPCPlugKit,14Pos. Standard Circular Connector PLUG KIT REV 20-14 Connector Accessories Plug Kit 14 POS Polyamide Black Product Highlights:Plug KitNumber of Positions = 14PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 20 14POS FREE HANGING ConnectorHousing;CPCPlugKit;14Pos.;Sz.20;MIL-C-5015;FreeHang;RevSex CPC PLUG KIT 20-14 W/O CBL CL |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 合规性 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | ULRecognized/CSA | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 通道数量 | 14 | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.023 | 直径 | 39.75 mm |
| 包装方式 | Bulk | 外壳尺寸 | 20 |
| 方向 | Keyed | 外壳样式 | Plastic |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 连接器样式 | Plug |
| 连接器用途 | Threaded | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Polyamide | 总长度 | 72.11 mm |
| 主要材料 | 5015Commercial | 端接样式 | Wire |
| 第一触头极性 | Male | 配接方向 | Keyed |
| 触点数 | 14 | 位数 | 14 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Polyamide |
| 第一连接器安装类型 | :Free Hanging | 第二连接器安装特性 | Reverse |
产品信息
| 备注 | Contacts Not Provided | 类型 | Kit |
| 类别 | Without | 连接器性别 | Plug |
| 系列 | MIL-C-5015 | 产品特性 | ReverseGender |
| 预加载 | No | 排列方式 | 20-14 |
| 制造商全称 | MIL-C-5015 | 产品子类型 | Plug Kit |
| 射频系列/标准 | 213571 | 应用细节 | Commercial |
| 适用产品/相关产品 | Pin Contacts | ||
