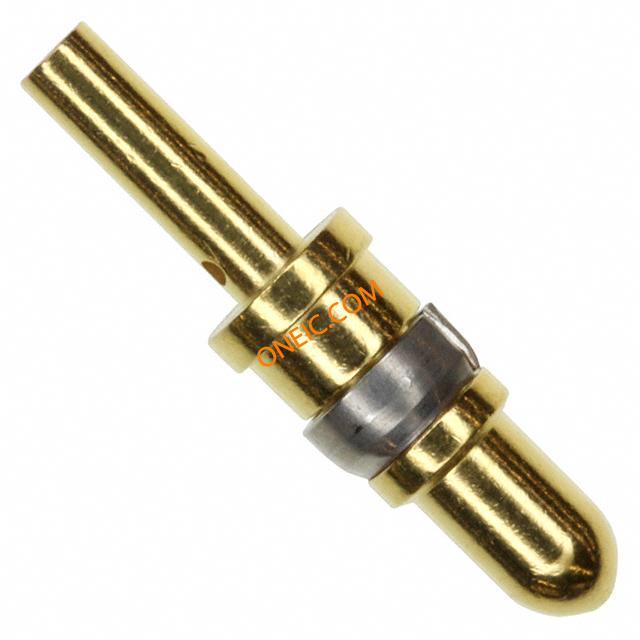

212013-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN CONTACT 18-16 AWG Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN PIN 16-18AWG CRIMP GOLD 212013-1 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Density = StandardTerminate To WirePinSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONTACT, PIN, 18-16AWG, CRIMP AMPLI,ASSY,PINCONTACT AMPLIMITE,ASY,PIN CONTACT |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Bag |
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
| 资质认证 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 输出高/低电流 | No | ||
机械参数
| 重量 | 0.00181 | 材料（通用） | Beryllium Copper |
| 包装方式 | Bulk | 导线线规 | 18-16 |
| 端接方式 | Crimp | 触点形式 | Machined |
| 触点尺寸 | 8 | 触头类型 | Power |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold Over Nickel |
| 触头材料 | Copper Alloy | 包装数量 | Loose Piece |
| 主要材料 | Contact | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件尾部长度 | 8 |
| 接触件端接 | Crimp | 接触镀层厚度 | 50µin (1.27µm) |
| 线规或范围 - AWG | :18AWG | 线规或范围 - mm² | 0.80-1.40² [18-16] |
| 触点材料 - 镀层 | Gold(50)μ | ||
产品信息
| 备注 | Use these contacts only with the Standard connectors. Do not use with Blindmate | 类型 | Power |
| 连接器性别 | PIN | 系列 | 109 |
| 密度 | Standard | 制造商全称 | 109Series |
| 产品子类型 | Contact | 连接类型 | Wire |
| 适用产品/相关产品 | :D Sub Connectors | ||
文档与媒体
相关型号
212522-1
te connectivity / amp
Conn D-Subminiature PL 1Power/21Signal POS Solder ST Cable Mount 22Terminal 1Port D-Sub Mixed Contact Connectors PLUG ASSY,21C1,AMPLI 25 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG 109 MIX 21C1 Conn Housing PL 1Coaxial/21Signal POS Crimp ST Conn Housing PL 1Coaxial/21Signal POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 21C1Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLUG ASSY,21C1,AMPLIMITE
446405-3
te connectivity / amp
Conn Housing PL 8Coaxial POS Crimp ST D-Sub Mixed Contact Connectors RECPT ASSY,SZ 4 ,COAX 8C8 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 8C8Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
212538-1
te connectivity / amp
Conn Housing PL 2Coaxial/25Signal POS Crimp ST Cable Mount D-Sub Mixed Contact Connectors PLUG ASSY 27C2 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG 27C2 CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 27C2Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,PLUG ASY,27C2
208744-1
te connectivity / amp
Conn D-Subminiature PL 4Power/36Signal POS Solder ST Cable Mount 40Terminal 1Port D-Sub Mixed Contact Connectors PLUG ASSY 32 POS 25 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG HSING 36C4 MIX Conn Housing PL 32/4 POS Crimp ST Conn Housing PL 32/4 POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 36C4Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLUG ASSY,32 POSN,AMPLIMITE
208810-1
te connectivity / amp
Conn D-Subminiature PL 13 POS ST Thru-Hole 13Terminal D-Sub Mixed Contact Connectors PLUG ASSY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG HSING 13C3 MIX Conn Housing PL 3Coaxial/10Signal POS Crimp ST Conn Housing PL 3Coaxial/10Signal POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 13C3Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
448153-2
te connectivity / amp
Conn Housing PL 3Power/3Signal POS 6.83mm Crimp ST Panel Mount D-Sub Mixed Contact Connectors PLUG ASSY SZ 2 COAX 3C3 NM Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 PLUG ASSY,SZ 2,COAX 3C3, NM PLUG ASSY,SZ 2,COAX 3C3, NM Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
5-212491-3
te connectivity / amp
Conn D-Subminiature PL 5Power/5Signal POS Solder ST Cable Mount 10Terminal 1Port D-Sub Mixed Contact Connectors 5G5 PLUG, CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG HSING 5C5 MIX Conn Housing PL 5Coaxial POS Crimp ST Conn Housing PL 5Coaxial POS Crimp ST Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
212498-2
te connectivity / amp
Conn Housing PL 9 POS Crimp ST Panel Mount D-Sub Mixed Contact Connectors PLUG ASSY 9C4 AMPLIMITE Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn Housing PL 9 POS Crimp ST Panel Mount Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
318813-1
te connectivity / amp
Screw Machine Contacts Hand Tools EXTRACTION TOOL CONN EXTRACTION TOOL EXTRACTIONTOOLASSY EXTRACTION TOOL, POWER BAND Extraction tool, 318813-1, TE Connectivity TE Connectivity AMPLIMITE 系列 压接拔取工具 EXTRACTION TOOL ASSY
211111-7
te connectivity / amp
AMPLI,SHELL,PLUG 11C1,TIN D-Sub Mixed Contact Connectors SHELL PLUG 11C1 TIN AMPLI SHELL PLUG 11C1 TIN CONN PLUG 11C1POS TIN SER 109 AMPLIMITE,SHELL,PLUG 11C1,TIN AMPLIMITE,SHELL,PLUG 11C1,TIN Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
208743-2
te connectivity / amp
Conn Housing PL 7Power/24Signal POS Crimp ST Panel Mount D-Sub Mixed Contact Connectors PLUG ASSY 24C7 5 NM Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 24C7Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,PLUG ASY,24C7,5,NM
212491-1
te connectivity / amp
Conn D-Subminiature PL 5Power/5Signal POS Solder ST Cable Mount 10Terminal 1Port D-Sub Mixed Contact Connectors PLUG ASSY,SZ 3,AMPLI 25 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG HSING 5C5 MIX Conn Housing PL 5Coaxial POS Crimp ST Conn Housing PL 5Coaxial POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 5C5Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLUG ASSY,SZ 3,AMPLIMITE COAX
446405-2
te connectivity / amp
Conn Housing PL 8 POS Crimp ST Panel Mount D-Sub Mixed Contact Connectors 8C8 PLUG ASSY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Housing Gender = PlugAccepts Contact Gender = PinDensity = StandardSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
5-448153-4
te connectivity / amp
Conn Housing PL 3 POS 6.83mm Crimp ST D-Sub Mixed Contact Connectors 3C3 PLUG, CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG 109 MIX 3C3 Conn Housing PL 3 POS 6.83mm Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 3C3Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,3C3,SZ 2,PLUG
446405-6
te connectivity / amp
Conn Housing PL 8Coaxial POS Crimp ST Panel Mount D-Sub Mixed Contact Connectors PLUG ASSY,SZ 4, COAX 8C8 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG HSING 8C8 MIX PLUG ASSY,SZ 4,COAX 8C8 PLUG ASSY,SZ 4,COAX 8C8 Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
5-208743-1
TE Connectivity / AMP
D-Sub Mixed Contact Connectors 24C7 PLUG, CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG HSING 24C7 MIX Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 24C7Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,ASY,PLUG,24C7 POS
5-211111-1
te connectivity / amp
PLUG ASSY,COAX MIX AMPLIMITE D-Sub Mixed Contact Connectors 11C1 PLUG, CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG 109 MIX 11C1 AMPLIMITE PLUG ASY,COAX MIX AMPLIMITE PLUG ASY,COAX MIX Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
446405-4
te connectivity / amp
Conn D-Subminiature PL 8Power/8Signal POS Solder ST Cable Mount 16Terminal 1Port D-Sub Mixed Contact Connectors ASSM PLUG 8C8 SZ 4 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG HSING 8C8 MIX AMPLIMITE,ASY,PLUG,8C8,SZ 4 AMPLIMITE,ASY,PLUG,8C8,SZ 4 Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
5-212498-1
te connectivity / amp
Conn D-Subminiature PL 4Power/9Signal POS Solder ST Cable Mount 13Terminal 1Port D-Sub Mixed Contact Connectors 9C4 PLUG, CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB PLUG HSING 9C4 MIX 5-212498-1 Conn Housing PL 4Power/9Signal POS Crimp ST Conn Housing PL 4Power/9Signal POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 9C4Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PLUG ASSY,9C4,AMPLIMITE

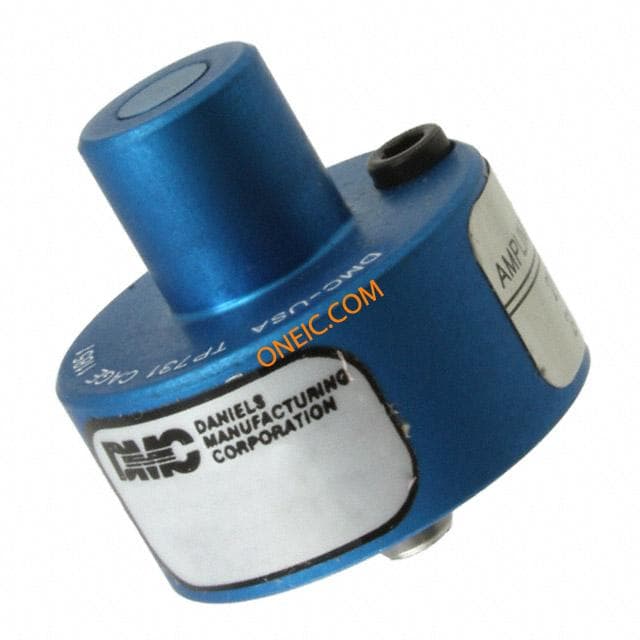

608668-2
