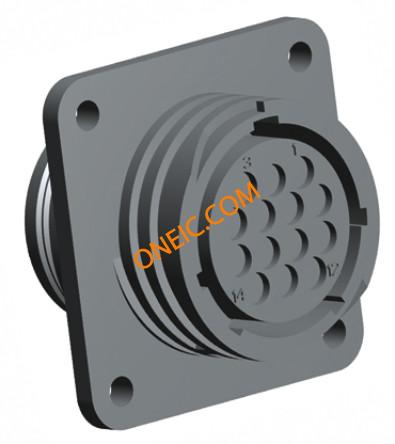

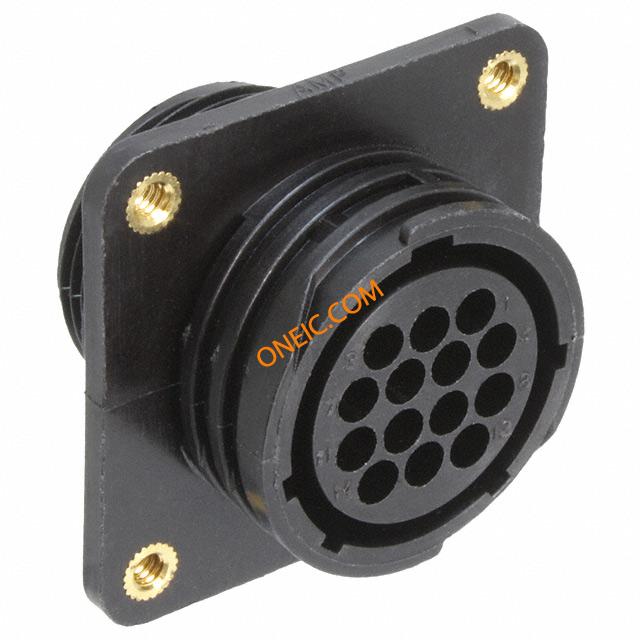

211103-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 14 POS Crimp ST Panel Mount 14 Terminal 1 Port CPC Connectors CONN RCPT CPC 14POS REV SER 1 ConnectorHousing,CPCRecept.Assy,14Pos Standard Circular Connector CPC RECPT 17-14 Conn CPC SKT 14 POS Crimp ST Panel Mount 14 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 14ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT SIZE 17, 14POS, PANEL ConnectorHousing;CPCRecept.Assy;14Pos;Sz17;Series1;PanelMnt;RevSex CPC RECPT ASSEMBLY 17-14 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 14 | 最大额定电流 | 13A |
机械参数
| 颜色 | Black | 深度 | 36.45 mm |
| 高度 | 36.45 mm | 密封型 | No |
| 重量 | 0.014 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 17 |
| 方向 | A | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点形式 | 14Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 连接器用途 | Threaded | 插入件材料 | Brass |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 总长度 | 27.18 mm | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Female | 配接方向 | Keyed |
| 触点数 | 14 | 位数 | 14 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Thermoplastic | 螺纹/螺钉/孔尺寸 | 4-40 |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Reverse |
| 外壳尺寸-插入件（转换至） | 17-14 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 产品特性 | ReverseGender | 钥匙类型 | A |
| 预加载 | No | 排列方式 | 17-14 |
| 制造商全称 | Series1 | 产品子类型 | Connector |
| 射频系列/标准 | 211103 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 密封等级 | IP65 | 防护等级 | IP65 |
| 工作温度 | -55C to 105C | ||
