点击放大查看

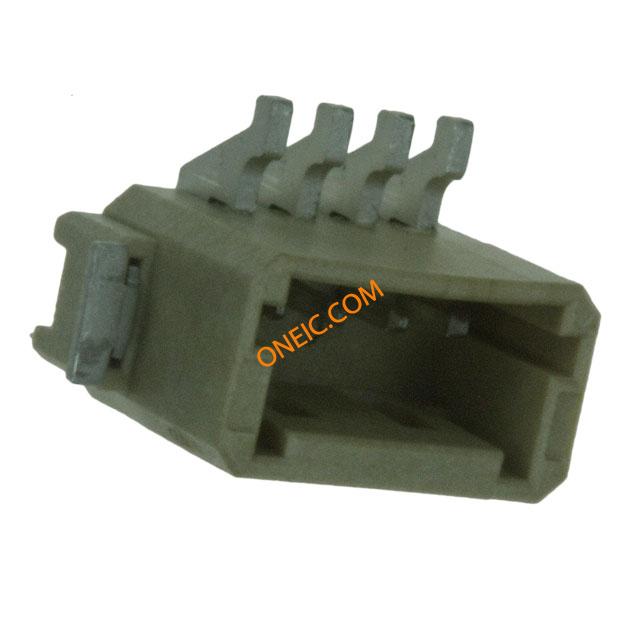

2106091-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 4POS T/H SMD 1.5MM Lighting Connectors 4P INVERTED SMT THRU BOARD Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD Product Highlights:Wire-to-Board1.50 mm CenterlineApplies To Printed Circuit BoardContact Current Rating, Max = 3 AOperating Voltage = 50 VACSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 4WAY 4 pos Inverted Thru Board SMT Header |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A99872CT |
| 产品类别 | Lighting Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1350 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| UL档案号 | E28476 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :- | 额定电压 | 70 V |
| 最大额定电流 | 3.0 | 最小供电电压 | 50.0 |
机械参数
| 间距 | 1.5 mm | 宽度 | 7.25 |
| 长度 | 12.11 | 密封型 | No |
| 重量 | 0.01 | 材料（通用） | :High Temp. Thermoplastic |
| 包装方式 | Tape & Reel (TR) | 尾部类型 | In-line |
| 电缆类型 | Discrete Wire | 端接方式 | Solder |
| 触头类型 | Pin | 引脚间距 | :1.5mm |
| 安装类型 | Boardlock(s) | 连接器类型 | Header |
| 接触镀层 | Tin Over Nickel | 排数 | 1 |
| 壳体镀层 | Matte Tin-Lead over Nickel | 连接器样式 | Inverted |
| 高度（英寸） | 6.9 | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 先合后断 | No |
| 端接样式 | Surface Mount | 连接器颜色 | :Natural |
| 触点数 | 4 | 接触件端接 | :Surface Mount Right Angle |
| 位数 | 4 | 中心触点表面处理 | 1.5 |
| 柱体长度（配合） | 2.4 | 接触镀层厚度 | 4.0 |
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 系列 | SlimSeal | 产品特性 | Board Lock |
| 方向 | Inverted | 编码、键控 | No |
| 测量制式 | 6.9 | 其他规格 | Yes |
| 应用细节 | Through Board | 加载位置数 | All |
环境参数
| 插拔次数 | Without | 工作温度 | :105°C |
