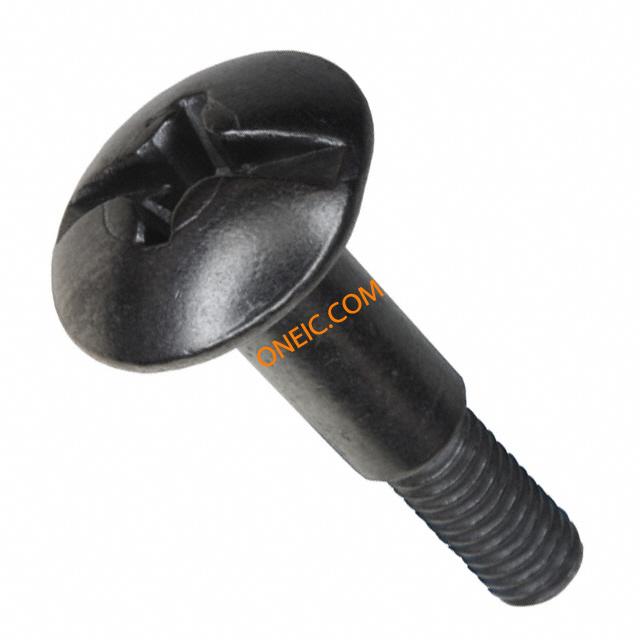

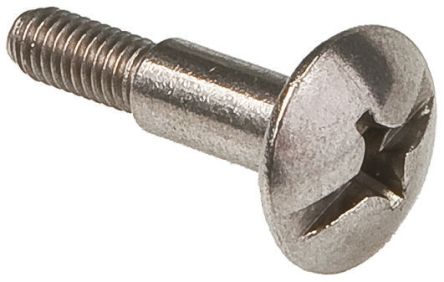

208211-1
| 制造商 | |
| 描述 | Connector Accessories Mounting Screw Stainless Steel Pin & Socket Connectors MOUNT SCREW M4X0.7 Metrimate Connectors CONN MT SCREW M4X.7-6H/6G METRIC Mounting Screw M4 Metrimate Connector Accessories Mounting Screw Stainless Steel Product Highlights:Mounting ScrewThread Size = M4 x 0.7-6H/6GSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SCREW, SHOULDER, M4, 600V MOUNTINGSCREWM4 TE Connectivity M4 x 0.7 凸肩螺钉, 使用于抽屉连接器 SCREW SHOULDER, SPEC |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 2082111 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | ||
机械参数
| 深度 | 12.7 mm | 间距 | 5 mm |
| 重量 | 0.001 | 直径 | 12.7 mm |
| 材料（通用） | Stainless Steel | 螺纹尺寸 | M4 x 0.7-6H/6G |
| 触头材料 | Stainless Steel | 壳体材料 | Stainless Steel |
| 总长度 | 24.5mm | 端接样式 | Screw |
| 螺纹/螺钉/孔尺寸 | :M4 x 0.7 | 头部以下螺纹长度 | :24.5mm |
产品信息
| 备注 | Used with Drawer Connector Configuration. | 类型 | Screw |
| 系列 | Metrimate | 制造商全称 | AMP |
| 产品子类型 | Receptacle Housings | 附件类型 | Mounting Screw |
| 射频系列/标准 | 208211 | 适用产品/相关产品 | Metrimate Series |
