207683-8

点击放大查看

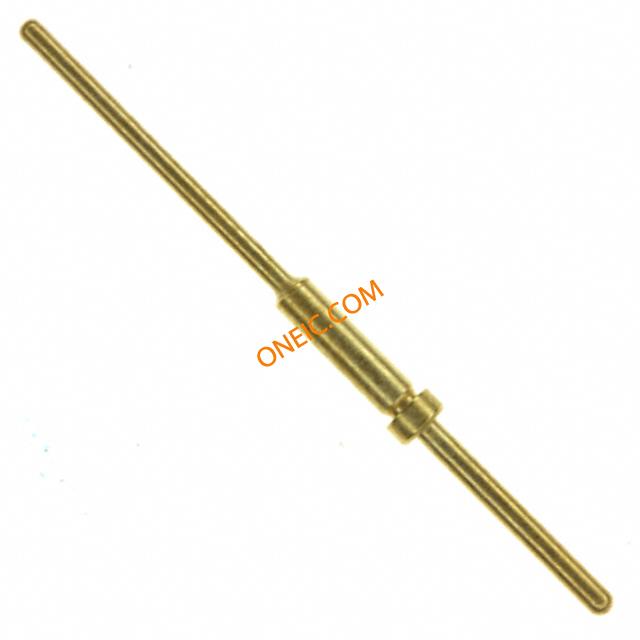

207683-8

制造商
TE Connectivity Ltd.
描述Contact PIN Solder ST Cable Mount Loose Piece D-Sub Contacts AMPLI PIN CONT SZ 22 AMPLIMITE - Aerospace & Military CONN PIN D-SUB CONTACT SIZE 22 Conn Contact PIN 1 POS Solder ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Solder ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 90Terminate To Printed Circuit BoardPinTermination (Solder) Post Length = 6.99 mmSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,PIN CONT,SZ 22D
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Contacts标准包装数量Bulk

合规参数

RoHSRoHS Compliant资质认证No
无铅定义Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capablRoHS/ELV合规状态RoHS compliant / ELV compliant
认证机构标志No

电气参数

最大额定电流否连接器类型 - 电压输入Solder, PCB
输出高/低电流No

机械参数

直径0.64材料（通用）Passivated Stainless Steel
包装方式Bulk端接方式Solder
触点形式Machined触点尺寸22
触头类型Signal触点形状Machined
端子尺寸22连接器类型Connector D-Subminiature
接触镀层Gold Over Nickel外壳材料（壳体）不锈钢
插入件材料铜合金触头材料Copper Alloy
包装数量Loose Piece主要材料Copper Alloy
绝缘高度否端接样式Solder
第一触头极性Pin (Male)连接器颜色否
接触件端接Solder, PCB端子柱长度6.99
接触镀层厚度50µin (1.27µm)触点材料 - 配合Gold

产品信息

类型Signal连接器性别PIN
系列90产品特性High Density (HD)
制造商全称AMP产品子类型Contact
其他规格Printed Circuit Board
