点击放大查看

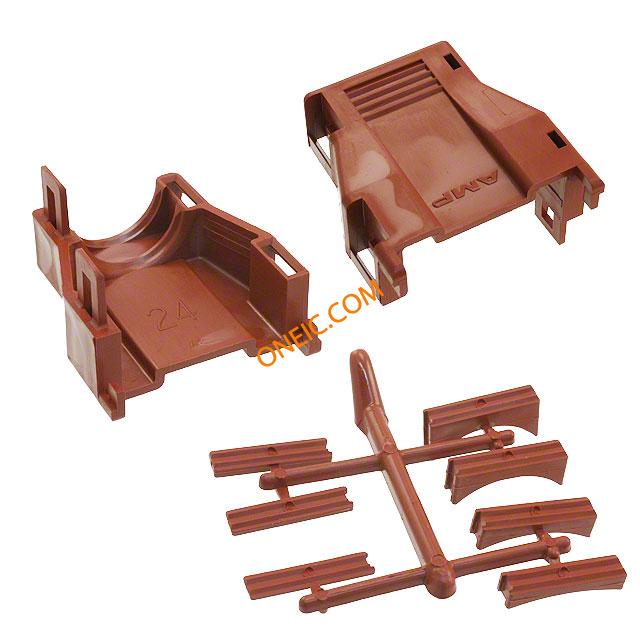

207088-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | METRIMATE,STR REL KIT,24P Metrimate Connectors METRIMATE STRAIN RELIEF 24POS 24 way metrimate hood,19.05mm cable dia Pin & Socket Connectors METRIMATE STR REL KIT 24P Connector Accessories Strain Relief Kit 24 POS Thermoplastic Red 600VAC Connector Accessories Strain Relief Kit 24 POS Thermoplastic Red 600VAC Product Highlights:Strain Relief KitSquare Grid Connector ConfigurationNumber of Positions = 24Not KeyedWithout Mounting EarsSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, STRAIN RELIEF KIT, 24WAY CONNECTOR,SOFTSHELL,METRIMATE,STRAINRELIEFKIT,24POSITION,SQUAREGRID TE Connectivity 应力释放支架 |
| 分类 |
商业参数
| 其他名称 | 2070881 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | ||
机械参数
| 间距 | 2 mm | 重量 | 0.004 |
| 第二连接器 | Without | 外壳颜色 | Red |
| 安装类型 | Without | 接触镀层 | Gold |
| 安装样式 | Through Hole | 轴直径 | Without |
| 连接器用途 | Square Grid | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic - GF | 安装特性 | Without |
| 包装数量 | Individual | 第一触头极性 | Socket (Female) |
| 触点数 | 2 | 绝缘直径 | 19.05 [.750] Max. |
| 位数 | 24 | 绝缘材料 - 材质 | :Thermoplastic |
产品信息
| 系列 | Metrimate | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | AMP |
| 产品子类型 | Accessory | 附件类型 | Strain Relief Kit |
| 其他规格 | No | 适用产品/相关产品 | Metrimate Series |
文档与媒体
相关型号
207305-1
te connectivity / amp
Conn Housing RCP 24 POS 5mm Crimp ST Metrimate Connectors CONN RECEPT 24 POS METRIMATE 24 way female connector,5mm pitch Pin & Socket Connectors 24P SQ GRID RCPT Conn Housing RCP 24 POS 5mm Crimp ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 24ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 24WAY, 5 Connector,SoftShell;Receptacle;24;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 24 Contact DesignMale Metrimate, 207305-1, TE Connectivity TE Connectivity Metrimate 系列 4 行 5mm 节距 24 路 直 母 压接连接器外壳 24 POS SQ GRID METRIMATE-RCPT

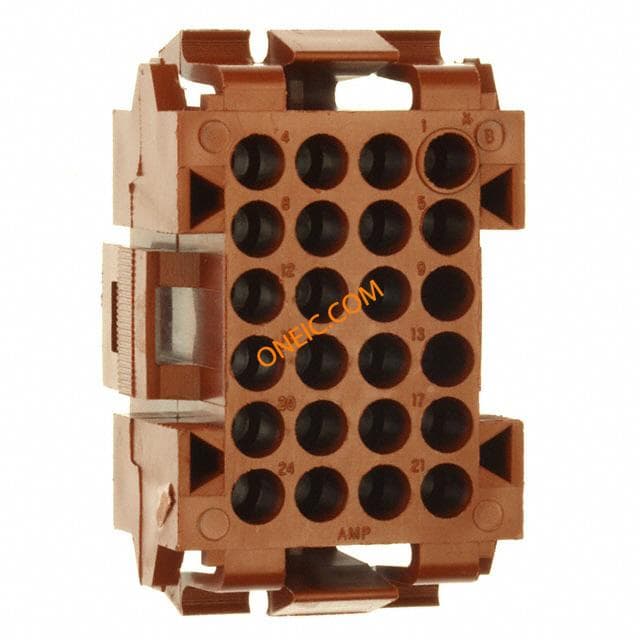

207304-1
