点击放大查看

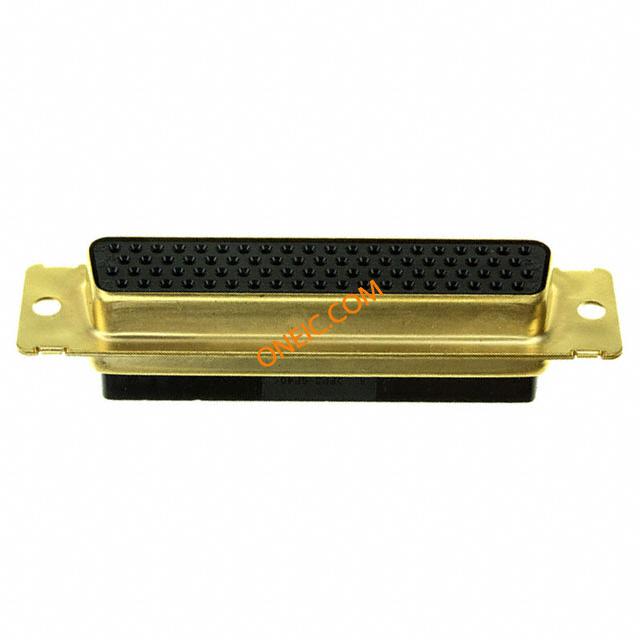

206505-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing F 78 POS Crimp ST Cable Mount D-Sub High Density Connectors RECEPT ASSY,78 POSN, AMPLIMITE - Aerospace & Military CONN D-SUB RECEPT HD 78POS Conn Housing F 78 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 78Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONNECTOR, HOUSING, HD D SUB, 78POS, RCPT Conn;D-Sub;CableSocket;78Pos;STR;90Series;Crimp;22AWG RECEPT ASSY,78 POSN,AMPLIMITE |
| 分类 |
商业参数
| 零件号别名 | 311P407-5S-B-12 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85366930 | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器阻抗 | No | 连接器类型 - 电压输入 | No |
机械参数
| 深度 | 15.37 mm | 高度 | 15.37 mm |
| 重量 | 0.014 | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 外壳尺寸 | 5 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触点尺寸 | 22 | 触头类型 | Crimp Snap-in |
| 非磁性 | Yes | 基体材料 | :Brass |
| 外壳颜色 | Black | 安装类型 | Straight |
| 外壳镀层 | Gold | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 4 |
| 外壳材料（壳体） | Brass | 连接器样式 | Receptacle |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 66.93 mm | 主要材料 | D-Subminiature |
| 端接样式 | Crimp | 第一触头极性 | Socket |
| 触点数 | 78 | 位数 | 78 |
| 外壳尺寸-插件 | :5 | 衬套/护套类型 | No |
| 安装孔直径 | 3.05 | 外壳材料及表面处理 | Brass, Gold Plated |
| 外壳尺寸，连接器布局 | 5 (DD, D) High Density | ||
产品信息
| 备注 | Contacts sold separately. | 类型 | Housing |
| 连接器性别 | F | 系列 | 90 |
| 已删除 | Compliant | 密度 | High |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 其他规格 | Wire/Cable | 设备部件号 | 311P407-5S-B-12 |
| 适用产品/相关产品 | :Size 22 Crimp Snap-in Contacts | ||
环境参数
| 工作温度 | -55C to 125C | ||
