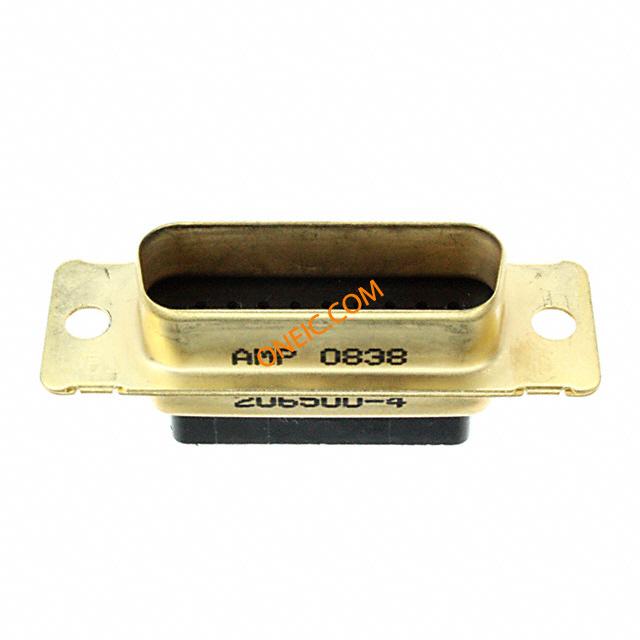

206500-4

点击放大查看

206500-4

制造商
TE Connectivity Ltd.
描述Conn Housing PL 26 POS 2.7mm Crimp ST D-Sub High Density Connectors PLUG ASSY,26 POSN,AM AMPLIMITE - Aerospace & Military CONN D-SUB PLUG HD 26POS Conn Housing PL 26 POS 2.7mm Crimp ST Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 26Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONNECTOR, HOUSING, HD D SUB, 26POS, PLUG Conn;D-Sub;CablePlug;26Pos;STR;90Series;Crimp;22AWG PLUG ASSY,26 POSN,AMPLIMITE
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名311P407-2P-B-12产品类别D-Sub High Density Connectors
标准包装数量Bulk

合规参数

RoHSRoHS Compliant标准MIL-C-24308
海关税号85369010无铅定义Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl
RoHS/ELV合规状态RoHS compliant / ELV compliant认证机构标志Yes

电气参数

连接器阻抗No连接器类型 - 电压输入No

机械参数

颜色Black深度16.25 mm
间距2.7 mm高度12.54 mm
重量0材料（通用）Copper Alloy
包装方式Bulk外壳尺寸2
导线线规22端接方式Crimp
触点尺寸22触头类型Crimp Snap-in
非磁性Yes外壳颜色Black
安装类型Straight外壳镀层Gold
行程角度Straight连接器类型Plug for Male Contacts
法兰特征Housing/Shell (Unthreaded)安装样式Wire
排数3外壳材料（壳体）Brass
连接器样式Plug本体材料:Metal
触头材料Brass壳体材料Brass
总长度39.14 mm主要材料D-Subminiature
端接样式Crimp第一触头极性Pin
触点数26位数26
外壳尺寸-插件:2衬套/护套类型No
安装孔直径3.05外壳材料及表面处理Brass, Gold Plated
外壳尺寸，连接器布局2 (DA, A) High Density

产品信息

备注Contacts Not Provided类型Housing
连接器性别PL系列90
密度High制造商全称AMP
产品子类型Connector其他规格Wire/Cable
设备部件号311P407-2P-B-12适用产品/相关产品:Size 22 Crimp Snap-in Contacts

环境参数

工作温度-55C to 125C
