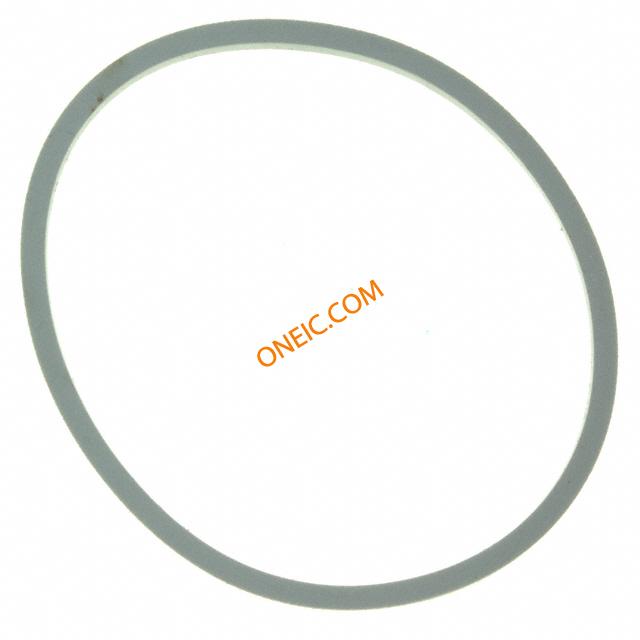

点击放大查看

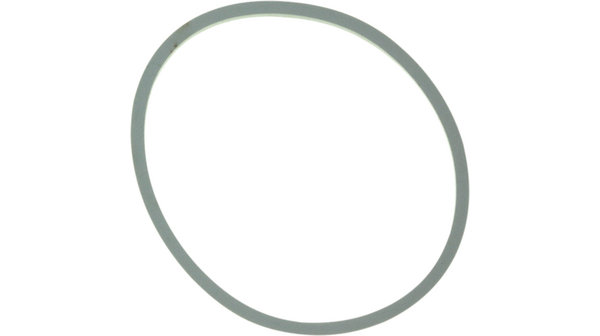

206403-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Peripheral Seal Elastomer CPC Accessories CONN SEAL PERIPHERAL SIZE 23 Series 3 interfacial seal,Size 23 Standard Circular Connector PERIPHERAL SEAL 23 Connector Accessories Peripheral Seal Elastomer Product Highlights:Peripheral SealShell Size = 23Search Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CPCPERIPHERALSEAL(FORRECEPTACLESONLY),SHELLSZ.23 Peripheral Seal,Housing size 23, 206403-3, TE Connectivity TE Connectivity 电线密封 #23 PERIPHERAL SEAL |
| 分类 |
商业参数
| 商标名 | CPC Accessories | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Gray | 直径 | 31.24 mm |
| 材料（通用） | Elastomer | 包装方式 | 袋 |
| 外壳尺寸 | 23 | 连接器类型 | Peripheral Seal |
| 壳体材料 | Elastomer | 包装数量 | 1000 |
| 连接器颜色 | grey | 外壳尺寸-插件 | 23 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 类型 | Seal | 系列 | CPC |
| CAD图纸 | 3D CAD Model | 描述 | Peripheral Seal |
| 产品子类型 | Peripheral Seal | 附件类型 | Peripheral Seal |
| 射频系列/标准 | 206403 | 适用产品/相关产品 | CPC Receptacle |
文档与媒体
