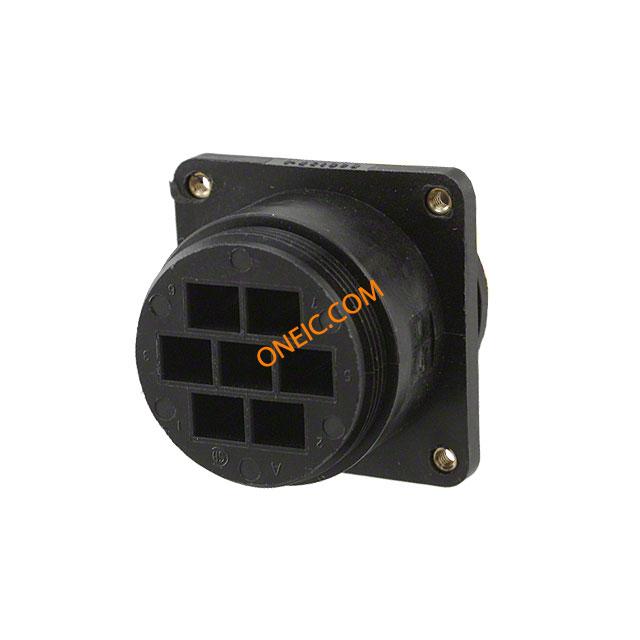

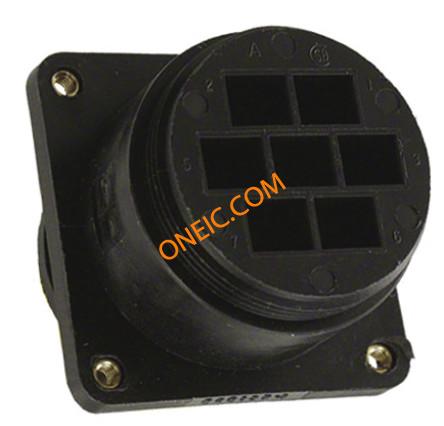

206137-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC M 7 POS ST Panel Mount 7 Terminal 1 Port Standard Circular Connector 23-7 RECEPT STD SEX CPC Connectors CONN CPC SER 3 RCPT 7POS SIZE 23 ConnectorHousing,CPCRecept.Assy,7Pos. Conn CPC M 7 POS ST Panel Mount 7 Terminal 1 Port Product Highlights:HousingHousing Type = Receptacle7 Positions0 Signal Positions7 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;7Pos.;Sz23;Series3;PanelMnt;StdSex 23-7 RECEPT STD SEX |
| 分类 |
商业参数
| 商标名 | CPC Series 3 | 其他名称 | 2061375 |
| 零件号别名 | 512-0984 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 防溅等级 | 无 | 通道数量 | 0 |
| 连接器类型 - 电压输入 | 标准 | ||
机械参数
| 颜色 | Black | 深度 | 44.45 mm |
| 高度 | 44.45 mm | 密封型 | No |
| 外形尺寸(长x宽) | 23 | 包装方式 | Bulk |
| 屏蔽 | 否 | 壳体颜色 | 黑色 |
| 出线方向 | No | 外壳尺寸 | 23 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 7Signal |
| 触点尺寸 | 7 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 7 | 外壳材料（壳体） | 母端, 母端 |
| 连接器样式 | Receptacle | 连接器用途 | Threaded |
| 面板厚度 | 0.125" | 触头材料 | Copper |
| 壳体材料 | Thermoplastic | 总长度 | 40.64 mm |
| 包装数量 | 1 | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 7 | 端接表面处理 | 带有 |
| 绝缘直径 | 5.59 [0.220] | 位数 | 7 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Nylon | 第一连接器安装类型 | Panel |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 23-7 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | CPC |
| 预加载 | No | 排列方式 | 23-7 |
| 制造商全称 | Series3 | 产品子类型 | Connectors |
| 射频系列/标准 | 206137 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 工作范围 | 不密封 | ||
相关型号
206136-3
te connectivity / amp
Conn CPC SKT 7 POS ST Cable Mount 7 Terminal 1 Port Standard Circular Connector CPC PLUG ASSEMBLY SIZE 23-7 CPC Connectors CONN PLUG CPC HSING 23-7 STD CPC PLUG ASSEMBLY SIZE 23-7 CPC PLUG ASSEMBLY SIZE 23-7 Search Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
