205166-1

点击放大查看

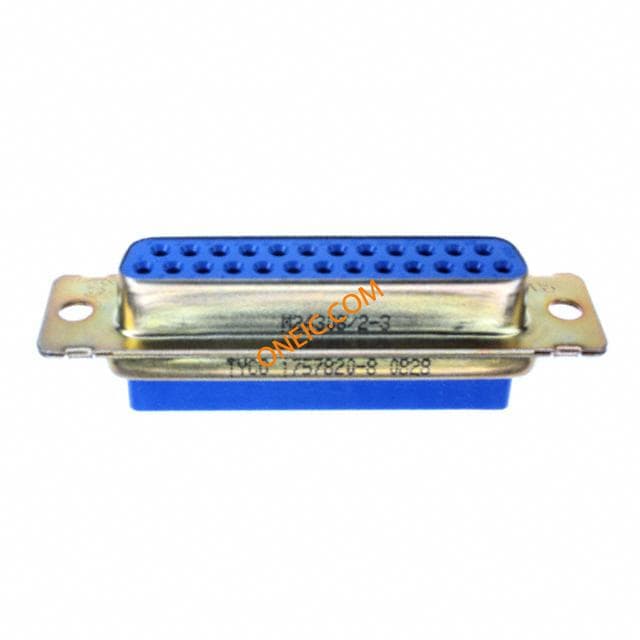

205166-1

制造商
TE Connectivity Ltd.
描述Conn Housing PL 25 POS ST D-Sub Standard Connectors PLUG 25P SERIES 109 AMPLIMITE - Aerospace & Military D-Sub Plug; Steel; Plug; Crimp; 3 Conn Housing PL 25 POS Crimp ST Panel Mount Conn Housing PL 25 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 25Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB SHELL, PLUG, 25POS, STEEL Conn;D-Sub;CablePlug;25Pos;STR;109Series;Crimp;20AWG ER - D-Sub Plug; Steel; Plug; Crimp; 3 AMPLIMITE,ASY,PLUG,STD,109,3
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名M24308 M24308/4-261F产品类别D-Sub Standard Connectors
标准包装数量Bulk

合规参数

RoHSNo标准MIL-C-24308
海关税号85369010资质认证No
无铅定义Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capablRoHS/ELV合规状态Not ELV/RoHS compliant
认证机构标志Yes

电气参数

连接器阻抗No连接器类型 - 电压输入No

机械参数

深度16.36 mm高度12.55 mm
重量0.014材料（通用）Stainless Steel
外壳尺寸3导线线规20
端接方式Crimp触点尺寸20
触头类型Crimp Snap-in非磁性No
基体材料:Steel外壳颜色Blue
安装类型Straight外壳镀层Cadmium
行程角度Straight连接器类型:D Sub
安装样式Wire排数2
外壳材料（壳体）Steel连接器样式Plug
本体材料:Metal壳体材料Steel
总长度53.04 mm主要材料D-Subminiature
端接样式Crimp第一触头极性Pin
触点数25位数25
外壳尺寸-插件:3衬套/护套类型No
安装孔直径3.05

产品信息

类型Housing连接器性别PL
系列109密度Standard
制造商全称AMP产品子类型Connector
其他规格Wire/Cable设备部件号M24308/4-261F
适用产品/相关产品:Size 20 Crimp Snap-in Contacts
