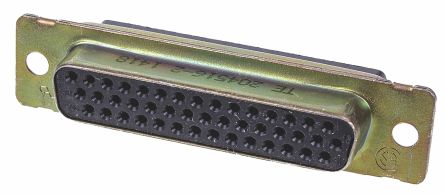

204504-1

点击放大查看

204504-1

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 44 POS Crimp ST Panel Mount D-Sub High Density Connectors 44P RECEPTACLE AMPLIMITE - Aerospace & Military AMPLIMITE 90 d-sub cable socket, 44 way Conn Housing RCP 44 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 44Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONNECTOR, RECEPTACLE, D-SUB, 44WAY Receptacle,Connector;44;Steel TE Connectivity AMPLIMITE 90系列 44路 直 军用压接 D-Sub 连接器, 插座 RECEPT ASSY,SZ 3,AMPLIMITE
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名M24308 M24308/2-288F产品类别D-Sub High Density Connectors
标准包装数量Bulk

合规参数

RoHSNo标准MIL-C-24308/2-287F
海关税号85369010资质认证No
无铅定义Wave solder capable to 260°C / Wave solder capable to 240°C / Wave solder capabl认证机构CSA,UL
RoHS/ELV合规状态Not ELV/RoHS compliant认证机构标志Yes

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite HD-22 Series连接器阻抗No
连接器类型 - 电压输入No

机械参数

深度0.494in宽度0.375in
高度12.55 mm长度2.088in
重量0.02材料（通用）Stainless Steel
外壳尺寸3导线线规22
端接方式Crimp触点尺寸22
触头类型Crimp Snap-in非磁性No
安装类型Straight外壳镀层Cadmium
行程角度Straight外壳涂层Cadmium
安装样式Wire排数3
外壳材料（壳体）Steel连接器样式Receptacle
本体材料:Steel触头材料Brass
壳体材料PPS总长度53.04 mm
主要材料InterconnectSystem尺寸/外形2.088 x 0.375 x 0.494in
端接样式Crimp第一触头极性Socket
触点数44接触件端接:Crimp
介电材料PolypheneyleneSulfide/Polyester绝缘直径0.054"(Wire)
位数44衬套/护套类型No
安装孔直径3.05

产品信息

备注Size 22 sockets supplied with receptacles are loose piece. / "F" is stamped on c类型Housing
连接器性别RCP系列90
密度High制造商全称AMP
产品子类型Connector其他规格Wire/Cable
设备部件号M24308/2-288F
