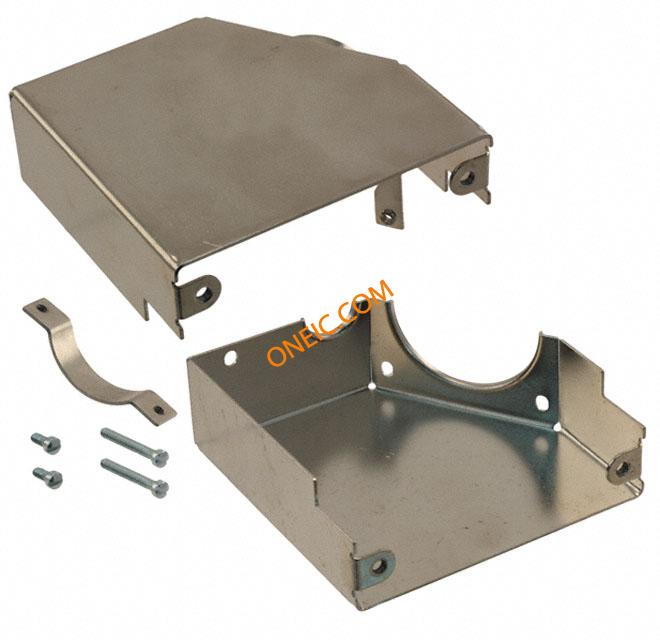

点击放大查看
202798-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 160 POS Shield Kit Carbon Steel Nickel Finish M Series Connectors CONN SHIELD 160CF POS 2PC SHORT Pin & Socket Connectors 160POS SHIELD Connector Accessories 160 POS Shield Kit Carbon Steel Nickel Finish Product Highlights:HardwareHardware Type = ShieldShort Shield Size45° Cable Exit AngleNone Mounting HardwareSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, SHIELD KIT, STEEL SERIES M 160 POS 450 SHIELD |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
机械参数
| 间距 | 1.27 mm | 重量 | 0.122 |
| 包装方式 | Bulk | 出线方向 | :45° |
| 连接器类型 | :Plug & Socket | 接触镀层 | Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 本体材料 | :Steel | 触头材料 | Steel |
| 壳体材料 | Steel | 第一触头极性 | Socket (Female) |
| 触点数 | 60 | 外壳尺寸-插件 | :- |
| 外部壳体材料 | :Steel | ||
产品信息
| 类型 | Shield | 系列 | M |
| 产品子类型 | Receptacle Housings | 附件类型 | Shield |
| 规格说明 | Metal, 160 Positions | 射频系列/标准 | 202798 |
| 适用产品/相关产品 | M Series | ||
