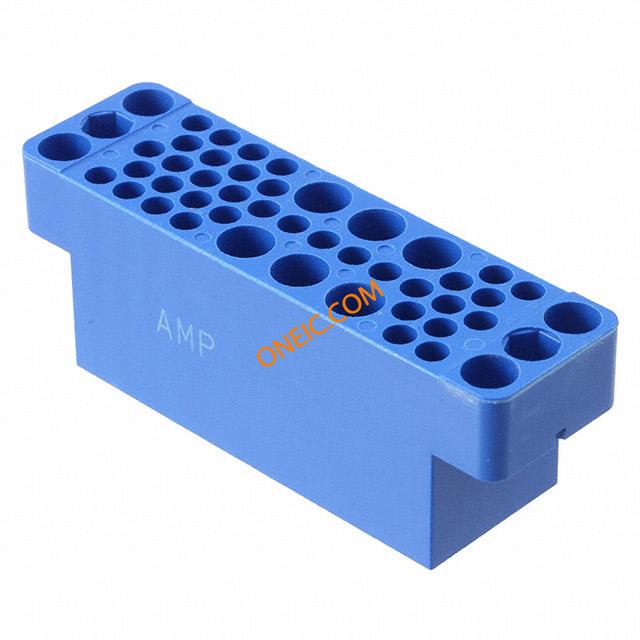

202516-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 42 POS ST Panel Mount 42 Terminal 1 Port M Series Connectors CONN HOUSING COAXI SKT 42POS BLU Pin & Socket Connectors 42 POS F BLOCK RECP Conn Power SKT 42 POS ST Panel Mount 42 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 42Diallyl Phthalate Housing MaterialReceptacleConnector Type = MixedSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 42 POS. FEMALE RECP. BLOCK |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 70 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| I/O高电平电压 | No | ||
机械参数
| 颜色 | Blue | 深度 | 23.24 mm |
| 间距 | 2.54 mm | 宽度 | 19.05 mm [ .75 in ] |
| 高度 | 19.05 mm | 长度 | 23.24 mm [ .915 in ] |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 触点形式 | No |
| 外壳颜色 | Blue | 安装类型 | Panel Mount |
| 连接器类型 | Mixed | 安装样式 | Wire |
| 排数 | 5 | 外壳材料（壳体） | 母端, 母端 |
| 连接器用途 | Receptacle | 壳体材料 | Diallyl Phthalate |
| 总长度 | 65.86 mm | 安装特性 | None |
| 包装数量 | 70 | 面板安装类型 | 带有 |
| 端接样式 | Crimp | 触点数 | 13 |
| 位数 | 42 | 兼容外壳尺寸（如TM-700等） | 标准 50 位硬件 |
| 中心触点材料 | No | 端子排数量 | 带有 |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | 42 position connector uses standard 50 position hardware.; Connector accepts an | 类型 | Power |
| 连接器性别 | SKT | 系列 | M |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 适用/相关制造商 | Type II, Type III+, Miniature Coaxicon, Type I, Subminiature Coaxicon | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -65 – 125 °C [ -85 – 257 °F ] |
