点击放大查看

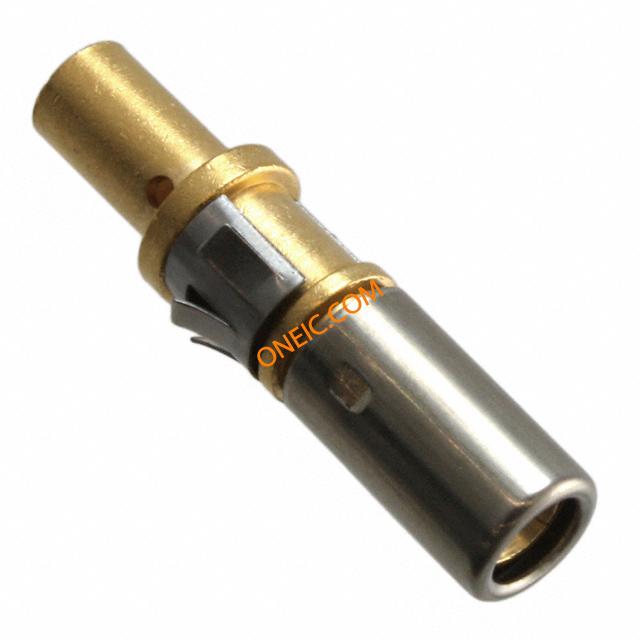

202417-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 12-14AWG GOLD CRIMP Pin & Socket Connectors SKT CONT ASSY TYPE I Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 2.00-3.00² [14-12] mm [AWG]Bronze Contact MaterialType ISearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, CRIMP, RECEPTACLE, 14-12AWG SKTCONTASSY,TYPEI SKT CONT ASSY,TYPE I |
| 分类 |
商业参数
| 商标名 | Multimate | 其他名称 | 2024171 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 输出电流 | 23.0 | 最大额定电流 | 23 A |
| 输出高/低电流 | No | ||
机械参数
| 深度 | 5.64 mm | 间距 | Not Required mm |
| 重量 | 0.005 | 镀层 | Nickel |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 导线线规 | 12-14 AWG | 端接方式 | Crimp |
| 触点形式 | Power | 触点尺寸 | 12 |
| 触头类型 | Socket | 引脚直径 | 2.39 |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Rectangular | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 总长度 | 21.59 mm |
| 包装数量 | Loose Piece | 主要材料 | Bronze |
| 绝缘高度 | No | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 1 POS |
| 接触件端接 | Crimp Snap-In | 绝缘材料 - 类型 | Beryllium Copper |
| 镀层厚度（通用） | 30µin (0.76µm) | 触点材料 - 配合 | Gold (30) |
| 线规或范围 - AWG | 2.00-3.00² [14-12] | ||
产品信息
| 类型 | Power | 等级 | Commercial |
| 连接器性别 | SKT | 系列 | Type I |
| 制造商全称 | AMP | 产品子类型 | Contacts |
| 其他规格 | Wire/Cable | 适用产品/相关产品 | :CR ZIF Connectors, G Series Connectors |
| 适用/相关制造商 | CR ZIF Connectors / G Series Connectors | ||
