202236-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate Contacts CONN PIN SOLDER CPC GOLD Contact male solder tab Multimate Pin & Socket Connectors TYPIII PIN S-TAB BR/AU SIG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Pin with Solder TabGold (30) Contact Mating Area Plating MaterialCopper Alloy Contact Base MaterialGold Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, SOLDER TypeIII+Contact,Pin,SolderTab,GoldPlated MultiMate Connector Type III+ Gold End Plating Size 16 Pin Solder Tab Solder contact male, 202236-7, TE Connectivity TE Connectivity Type III+ 系列 13A 公 焊接端接 圆形 连接器 触芯, 使用于CPC 连接器、M 系列连接器 III+PIN,SOLTAB,30AU>10,LP,SN |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 输出电流 | 13.0 | 最大额定电流 | :13A |
| 输出高/低电流 | No | ||
机械参数
| 深度 | 3.18 mm | 间距 | Not Required mm |
| 重量 | 0.00068 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 电缆类型 | Discrete Wire | 端接方式 | Crimp |
| 触点形式 | Signal | 触点尺寸 | 16 |
| 触头类型 | Power | 引脚直径 | 1.57 |
| 安装类型 | Straight | 插针或插孔 | Pin |
| 连接器类型 | Connector Power | 接触镀层 | Bright Tin-Lead |
| 安装样式 | Cable | 磁芯材质 | Stainless Steel |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 28.24mm | 包装数量 | Loose Piece |
| 主要材料 | Copper Alloy | 绝缘高度 | No |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 端接表面处理 | Gold |
| 接触件端接 | Solder Eyelet | 镀层厚度（通用） | 30µin (0.76µm) |
| 触点材料 - 配合 | Gold (30) | ||
产品信息
| 备注 | These contacts can be used in MultiMate contact positions of all connector housi | 类型 | Stamped |
| 等级 | Commercial | 连接器性别 | PIN |
| 系列 | Type III+ | 制造商全称 | AMP |
| 产品子类型 | Contacts | 端口数 | 1 Port |
| 其他规格 | Wire/Cable | 适用产品/相关产品 | :M Series, CPC Connectors |
| 适用/相关制造商 | CPC Connectors / M Series Connectors | ||
相关型号

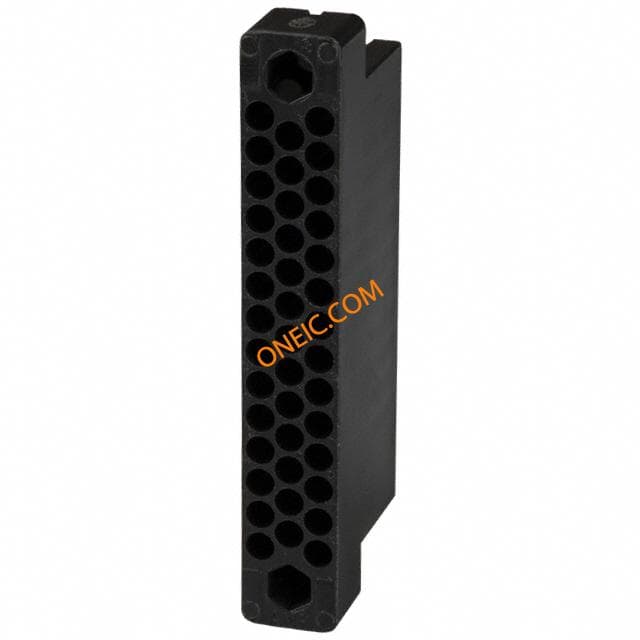

201302-1
te connectivity / amp
Conn Housing RCP 41 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CONN HOUSING RECEPT 41POS BLACK
205058-2
te connectivity / amp
Conn Housing PL 50 POS 5.08mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 50 POS BLACK Pin & Socket Connectors 50 POS BLOCK 50 POS PLUG HSG M Series Connectors Product Highlights:HousingNumber of Positions = 50Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 50WAY 50 POS. BLOCK (SOCKET)
201302-3
te connectivity / amp
Conn Housing RCP 41 POS 3.81mm Crimp ST Panel Mount Loose Piece M Series Connectors CONN RECEPTACLE BLOCK HSG 41 POS Pin & Socket Connectors 41P RECPT B/K HOUS M Series Connectors Product Highlights:Housing41 PositionsDiallyl Phthalate Housing MaterialHousing Gender = ReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
206151-1
te connectivity / amp
Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 37 PIN shell size 23 Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 23-37, PANEL ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:37 Receptacle CPC1 Poles=37, accepts male contacts / with flange, 206151-1, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 23-37 RECEPT STD SEX
201355-1
te connectivity / amp
Conn Housing PL 14 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING PLUG 14POS BLACK Housing plug 14 way M series Pin & Socket Connectors MALE BLOCK 14 PL. Conn Housing PL 14 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 14Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 14WAY InterconnectPlugHousing;Phenolic;Black;Standard;14;AmpBrand,MSeries TE Connectivity M 系列 3 行 3.81mm 节距 14 路 直 公 压接连接器外壳 MALE BLOCK 14 PL.
200837-2
te connectivity / amp
Conn Housing PL 34 POS 3.81mm Crimp ST Loose Piece Pin & Socket Connectors 34 POS CONN M Series Connectors CONN HOUSING PLUG 34 POS BLACK M Series Connectors Product Highlights:HousingNumber of Positions = 34Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, MALE BLOCK 34 PL.
200512-2
te connectivity / amp
Conn Housing RCP 26 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 26POS BLACK Housing 26 way Receptacle M Series Pin & Socket Connectors FEMALE BLOCK 26 PL. Conn Housing RCP 26 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 26Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, CONNECTOR,SOFTSHELL,M-SERIES,RECEPTACLE,26POSITION,MINIATURE,PHENOLIC,B TE Connectivity M 系列 29.209mm 节距 26 路 直 母 电缆安装 压接连接器外壳 FEMALE BLOCK 26 PL.
208715-1
te connectivity / amp
Conn Metal Shell CPC PIN 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN RECEPT CMC 7POS STD SER 1 Standard Circular Connector RECP SQUARE STD 14-7 Conn Metal Shell CPC PIN 7 POS Crimp ST Panel Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, STD CPC1, 7WAY Connector;MetalShellCPC;Recept.Assy;7Pos.;Sz.14;Series1;PanelMount RECEPT ASSY,SZ 14-7,CMC
211768-1
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS REV SER 1 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG 9 POSITION shell size 17 Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, SIZE 17, 9WAY ConnectorHousing;CPCPlugAssy;9Pos.;Sz.17;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:9 Cable plug, series CPC 9-pin CPC 1 9P Male 17, 211768-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 17-9
211771-1
te connectivity / amp
Conn CPC PIN 19 POS Crimp ST Panel Mount 19 Terminal 1 Port CPC Connectors CONN RECEPT CPC 19POS STD SER 1 19 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 19 PIN shell size 23 Conn CPC PIN 19 POS Crimp ST Panel Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR ConnectorHousing;CPCReceptacle;19Pos.;Sz.23;Series1;PanelMnt;StdSex Receptacle CPC1 Poles=19, accepts male contacts / with flange, 211771-1, TE Connectivity TE Connectivity 19路 面板安装 直向 连接器 插座 , 公触点 23-19 CPC RECEPT, STND SEX
206036-8
te connectivity / amp
Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RCPT CPC HSING 17-16 STD Standard Circular Connector RECEPT SZ 17-16 CPC Conn CPC PIN 16 POS ST Panel Mount 16 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 1616 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ17-16CPC,W/INSERTS RECEPT,SZ 17-16 CPC,W/INSERTS
211400-1
te connectivity / amp
Conn CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CPC Connectors CONN PLUG CPC 7POS REV SER 1 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 13 with Female Contacts Standard Circular Connector PLUG 7 PIN shell size 13 Conn CPC SKT 7 POS Crimp ST Cable Mount 7 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 7PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG ASSEMBLY, SIZE 13-7 ConnectorHousing;CPCPlugAssy;7Pos.;Sz.13;Series1;FreeHang;RevSex Connector: circular; Series: CPC Series 1; plug; male; PIN:7 Plug CPC1 Poles=7, accepts male contacts / Free hanging/cable mount, 211400-1, TE Connectivity TE Connectivity 7路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 13-7
206705-1
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port CPC Connectors CONN RECEPT CPC 9POS STD SER 1 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 13 with Male Contacts Standard Circular Connector RECEPTACLE 9 PIN shell size 13 Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 13-9, PANEL ConnectorHousing;CPCReceptacle;9Pos.;Sz.13;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:9 CPC (Circular Plastic) and Circular Metal-Shell Connectors; Housing Connector Style: Receptacle 9 Positions 9 Signal Positions 0 Power Positions Receptacle CPC1 Poles=9, accepts male contacts / with flange, 206705-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 公触点 CPC RECP. ASY SIZE 13-9
206838-1
te connectivity / amp
Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Standard Circular Connector RECEPTACLE 24 PIN shell size 23 CPC Connectors CONN RECEPT CPC 24POS STD SER 1 24 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Conn CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONN, RECEPTACLE, 24 WAY, PANEL ConnectorHousing;CPCReceptacle;24Pos.;Sz.23;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:24 Receptacle CPC 1 24P Female 23, 206838-1, TE Connectivity TE Connectivity 24路 面板安装 直向 连接器 插座 , 公触点 23-24 RECEPT
213801-1
te connectivity / amp
Conn Housing RCP 34 POS 3.81mm ST Loose Piece M Series and V.35 Connectors CONN RCPT HOUSING 34POS VERT BLK Pin & Socket Connectors M-SER REC HSG 34 POS Conn Housing RCP 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Polyester Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIES RCPT HOUSING,34 POS

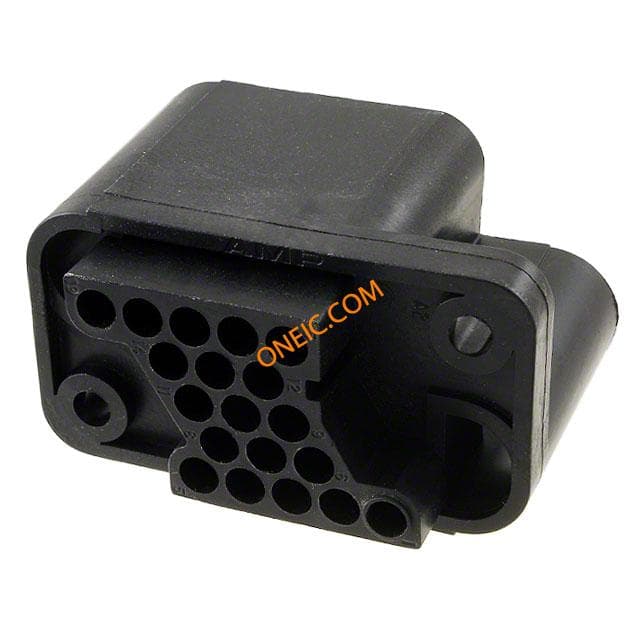

208209-1
