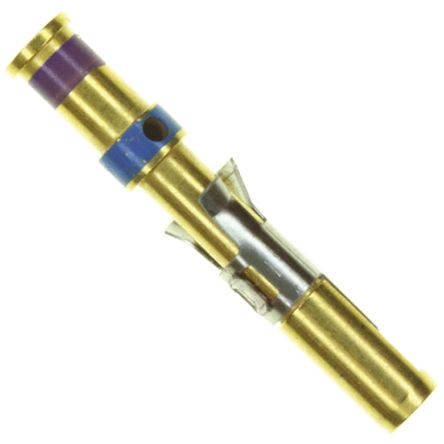

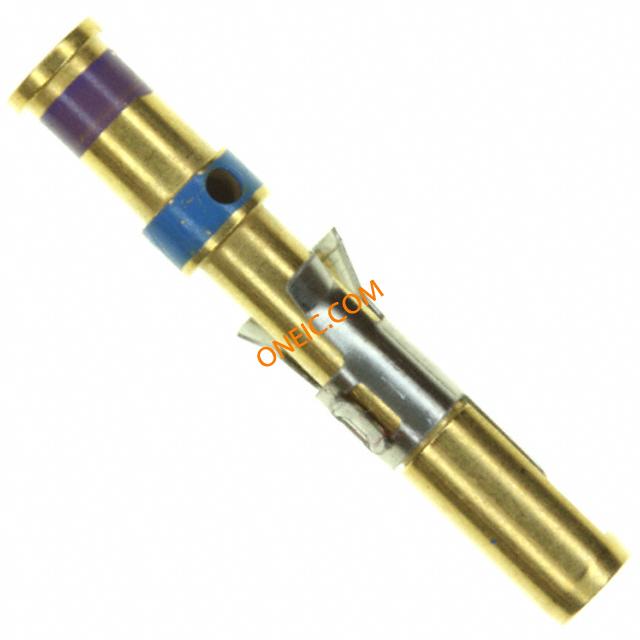

201568-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONTACT SOCKET ASSY. Multimate CONN SOCKET 14AWG GOLD CRIMP Contact Crimp Socket 14AWG Multimate Pin & Socket Connectors CNTCT ASSM SCKT #16 Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 2.00-2.15² [14] mm [AWG]Brass Contact MaterialType IISearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Socket,Signal,TypeII,Crimp,14AWG,Violet/Blue 14 AWG Socket Violet/Blue Color Code Crimp Snap-In Multimate Type II Connector TE Connectivity Type II 系列 母 压接接线端子, 压接, 镀金镀镍触点 |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | Compliant | 抗辐射加固 | No |
电气参数
| 测试电流 | 13 | 连接器类型 - 电压输入 | Crimp |
机械参数
| 镀层 | Gold | 直径 | 3.25 mm |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 出线方向 | No | 电缆类型 | 分离式导线 |
| 导线线规 | 14 AWG | 端接方式 | Crimp |
| 触点形式 | 1Signal | 安装类型 | Straight |
| 插针或插孔 | Socket | 外壳镀层 | Not Required |
| 端子尺寸 | 16 | 连接器类型 | 母座 |
| 接触镀层 | Gold over Nickel | 安装样式 | Cable |
| 插入件材料 | 黄铜 | 材料表面处理 | Gold |
| 触头材料 | Brass | 总长度 | 19.94 mm |
| 包装数量 | 1000 | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | 紫色/蓝色 | 触点数 | 1 POS |
| 接触件端接 | Crimp | 镀层厚度（通用） | 30µin (0.76µm) |
| 兼容外壳尺寸（如TM-700等） | CPC 连接器, G 系列连接器, M 系列连接器 | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 16-14 | ||
产品信息
| 备注 | TH501 调整盘（料号 1-601967-5）与手动工具 601967-1 搭配使用。, 插入工具编号 200893-2（用于绝缘直径不超过 1.78 [.07] 的情况）。, 退针工具编号 305183 | 类型 | Machined |
| 连接器性别 | Female | 系列 | Multimate Type II |
| 产品子类型 | Contacts | 射频系列/标准 | 201568 |
| 应用细节 | Signal | ||
环境参数
| 工作温度 | -55 – 150 | ||
