点击放大查看

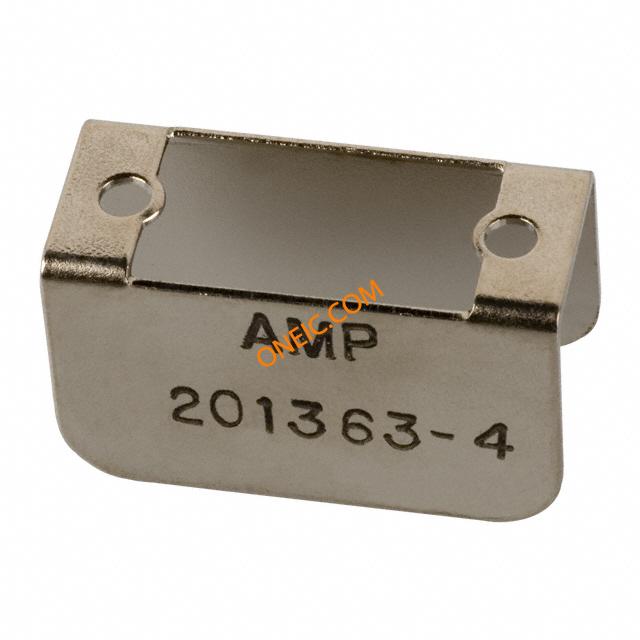

201363-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 14 POS Pin Hood Loose Piece Carbon Steel Nickel Finish M Series Connectors CONN PIN HOOD INT 14POS PANEL MT Pin & Socket Connectors 14P PIN HOOD-CD Connector Accessories 14 POS Pin Hood Loose Piece Carbon Steel Nickel Finish Product Highlights:HardwareHardware Type = Pin HoodPin Hood Type = Internal Open EndFlangelessMount = Panel MountSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 14 POS. PIN HOOD-CD. PL. |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 宽度 | 13.97 mm [ .55 in ] | 高度 | 31.75 mm [ 1.25 in ] |
| 长度 | 18.26 mm [ .719 in ] | 镀层 | Nickel |
| 材料（通用） | Steel | 包装方式 | Bulk |
| 安装类型 | Panel Mount | 法兰特征 | No |
| 触头材料 | 内部开端 | 壳体材料 | Steel |
| 安装特性 | None | 包装数量 | Loose Piece |
| 兼容外壳尺寸（如TM-700等） | 14 位柱形连接器, 14 位标准柱形连接器 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Used with 14 position standard connectors.; Used with 14 position posted connec | 类型 | Pin Hood |
| 系列 | M | 挂钩类型 | Internal Open End |
| 产品子类型 | Hardware | 硬件类型 | Pin Hood |
| 附件类型 | Hood | 射频系列/标准 | 201363 |
| 适用产品/相关产品 | M Series | ||
