点击放大查看

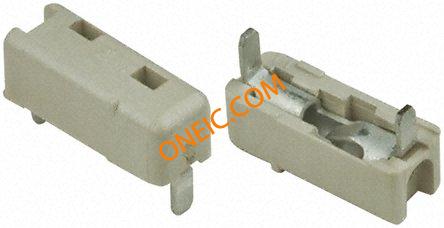

2008563-2
| 制造商 | |
| 描述 | LED Interconnection RCP 1 POS RA LED Interconnects CONNECTOR 1POS SMT POKE-IN BLACK TE Connectivity 1 Way 1 Row Right Angle Lighting Connectors Surface Mount Wire to Board Lighting Connectors 1 Pos SMT Poke-In Black LED Interconnection RCP 1 POS RA Search Keywords:Poke-in, Pok-in, Pokein, Pokin, Poke In CONNECTOR, POKE-IN, 1WAY, SMT Connector,recpt,SMT,poke-in,1Way,Black 1 POSITION SMT POKE-IN BLACK RECEPTACLE TE Connectivity 1路 直角 表面贴装 照明连接器, 线对板 Connector,1 Pos SMT Poke-In, B |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A104083CT |
| 产品类别 | Lighting Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| UL档案号 | E28476 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :TE - Poke-In Series | 额定电压 | 250 V ac/dc |
| 击穿电压 | :1500V | 最大额定电流 | 4.0 |
| 最小供电电压 | 250.0 | ||
机械参数
| 颜色 | Black | 间距 | :4mm |
| 宽度 | 3.95 | 高度 | 3.9 mm |
| 长度 | 14.22 | 密封型 | No |
| 重量 | 0.01 | 材料（通用） | :LCP |
| 包装方式 | Tape & Reel (TR) | 尾部类型 | In-line |
| 电缆类型 | Discrete Wire | 导线线规 | 18 AWG, 20 AWG, 22 AWG |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Right Angle | 电缆直径 | 18.0 - 22.0 |
| 连接器类型 | Connector Assembly | 接触镀层 | Tin |
| 排数 | 1 | 壳体镀层 | Matte Tin over Nickel |
| 高度（英寸） | 3.9 | 触头材料 | Copper Alloy |
| 壳体材料 | Liquid Crystal Polymer (LCP) | 导线端接方式 | Yes |
| 先合后断 | No | 端接样式 | Surface Mount |
| 连接器颜色 | :Black | 触点数 | 1 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 1 |
| 接触镀层厚度 | 3.0 | 线规或范围 - AWG | :22AWG |
产品信息
| 类型 | LED Interconnection | 样式 | Board to Cable/Wire |
| 连接器性别 | RCP | 产品特性 | Poke-In Connector Assembly |
| 方向 | Horizontal | 预加载 | Yes |
| 编码、键控 | No | 测量制式 | 10.5 |
| 其他规格 | Yes | 应用细节 | Wire to Board |
环境参数
| 插拔次数 | Without | 工作温度 | :105°C |
