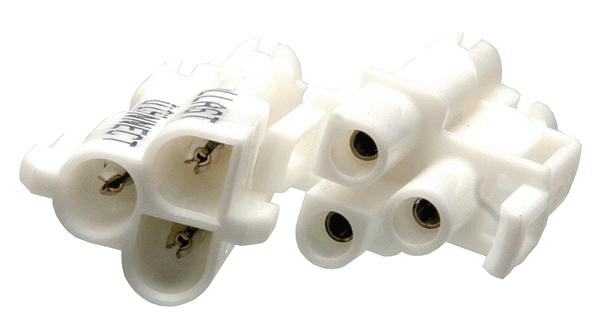

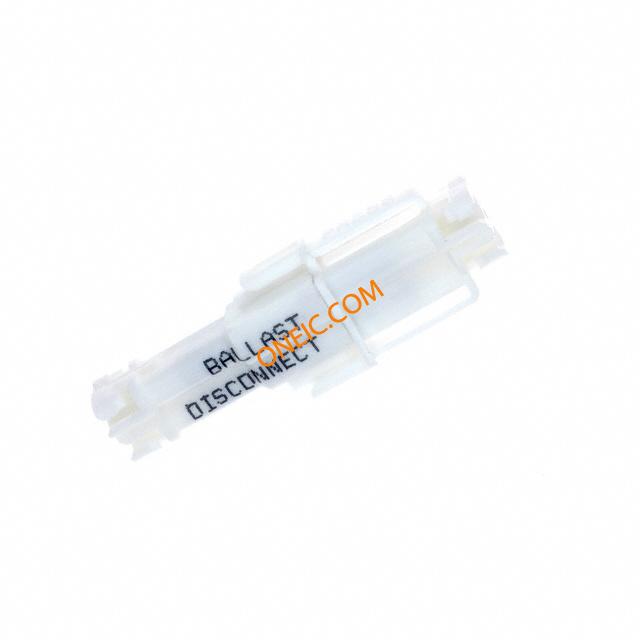

2008152-1
| 制造商 | |
| 描述 | Conn Wire to Wire PL/RCP 3 POS ST Cable Mount Ballast Products & LED Interconnections CONN MATED PAIR 3POS LIGHT-N-LOK Connector,wire, mated pair,L-N-L,3 Way Lighting Connectors 3 POS LIGHT-N-LOK Conn Wire to Wire PL/RCP 3 POS ST Cable Mount Search Keywords:lighting, LIGHT-N-LOK, hot-pluggable, fluorescent, ballast, poke-in, surface mount, splice poke-in, tap wire, IDC poke-in, LED applications, SMT thru-hole poke-in connector, Wire lighting connectors, SMT connectors, thru-hole poke-in connectors, lighting connectors, Poke-in Wire connectors, low profile SMT connector, low profile lighting connectors, low profile connectors, Hermaphroditic CONNECTOR, MATED PAIR, 3WAY Connector,Light-N-Lok,PlugandReceptacleMatedPairAssembly,3Position Pug and socket set 3P, 2008152-1, TE Connectivity TE Connectivity LIGHT-N-LOK 系列 天然色 电线 → 电线, 电缆安装, 额定电流 5A, 600 V 交流 Asy,Mated Plug & Recpt,3 Pos,L |
| 分类 |
商业参数
| 其他名称 | A97691 | 产品类别 | Lighting Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 5A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 重量 | 0.01 |
| 材料（通用） | :Polyamide | 包装方式 | Bulk |
| 导线类型 | Discrete | 导线线规 | 18 AWG |
| 端接方式 | Poke-In | 触头类型 | Female Socket; Male Pin |
| 外壳颜色 | Natural | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug and Receptacle | 接触镀层 | Tin |
| 紧固类型 | Latch Lock | 安装样式 | Cable |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyamide (PA) | 总长度 | 61.54 mm |
| 主要材料 | Lighting(orBallastProducts) | 电缆端接方式 | Poke-In |
| 连接器颜色 | Natural | 触点数 | 3 |
| 接触件端接 | :Press Fit Vertical | 位数 | 3 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | PL/RCP |
| 系列 | :LIGHT-N-LOK | 产品特性 | Kit |
| CAD图纸 | 3D CAD Model | 制造商全称 | Light-N-Lok |
