点击放大查看
200334-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONTACT PIN 20-24AWG CRIMP GOLD Modular Connectors / Ethernet Connectors CONTACT PIN ASSY. Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.40 - 1.90 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT PIN ASSY. |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 测试电流 | 7.5 | ||
机械参数
| 镀层 | Gold | 材料（通用） | Copper Alloy |
| 包装方式 | Bulk | 电缆类型 | 分离式导线 |
| 导线线规 | 20-24 AWG | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | 闭式压线筒 |
| 插针或插孔 | Pin | 端子尺寸 | 20 |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Nickel |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 包装数量 | 1000 | 端接样式 | 插针 |
| 连接器颜色 | 黄色/红色 | 接触件端接 | Crimp |
| 绝缘直径 | 1.4 – 2.16 mm [ .055 – .085 in ] | 镀层厚度（通用） | 30µin (0.76µm) |
| 兼容外壳尺寸（如TM-700等） | M 系列连接器 | 接触镀层厚度 | 30 |
产品信息
| 备注 | 包含压线筒在内的总绝缘压接直径不得超过 3.18 [.125]。 | 类型 | Machined |
| 连接器性别 | PIN | 系列 | Multimate Type II |
| 产品子类型 | 端子 | 应用细节 | Signal |
文档与媒体
相关型号

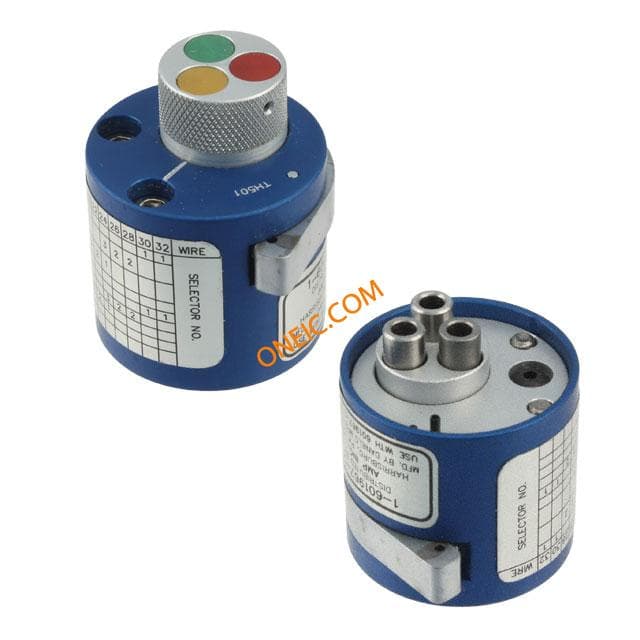

1-601967-5
