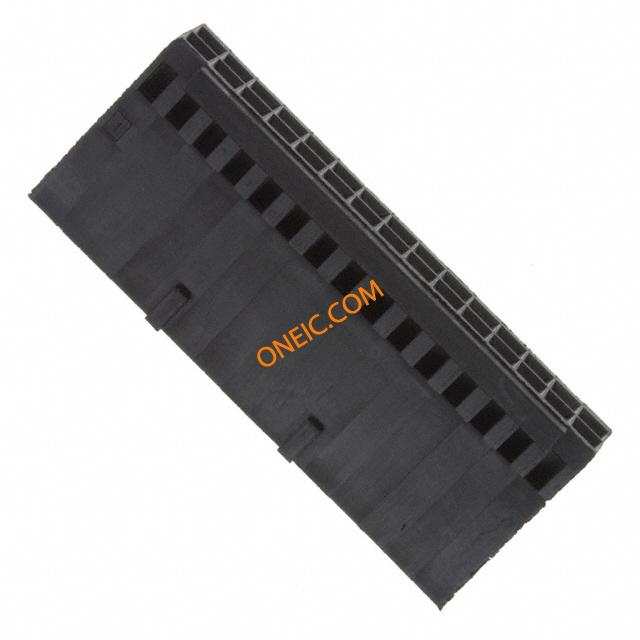

点击放大查看

2-87631-6

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 30POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 30 POS Conn Housing RCP 20 POS 2.54mm ST Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 2.54MM, 30WAY CONNECTOR,HOUSING,RECEPTACLE,MODIV,30POSITION,DUALROW,MARKED AMPMODU 30 Position Dual Row 2.54 mm Pitch Crimp Receptacle Housing Connector 30 MODIV HSG DR MRKD .100 POL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压	250 V	开关功能	Detent Latching
最大额定电流	3 A

机械参数

颜色	Black	间距	2.54 mm
重量	0.02	包装方式	Bulk
导线线规	20-30 AWG	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	2	触头材料	Phosphor Bronze
壳体材料	Nylon	主要材料	InterconnectSystem
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	30	接触件端接	Crimp
位数	30

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
应用细节	Board to Board	适用产品/相关产品	:AMPMODU Mod IV Mod IV.5, Mod V Series Socket Contacts

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

2-87631-6?RQPN=2-87631-6
