首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）2-87631-2

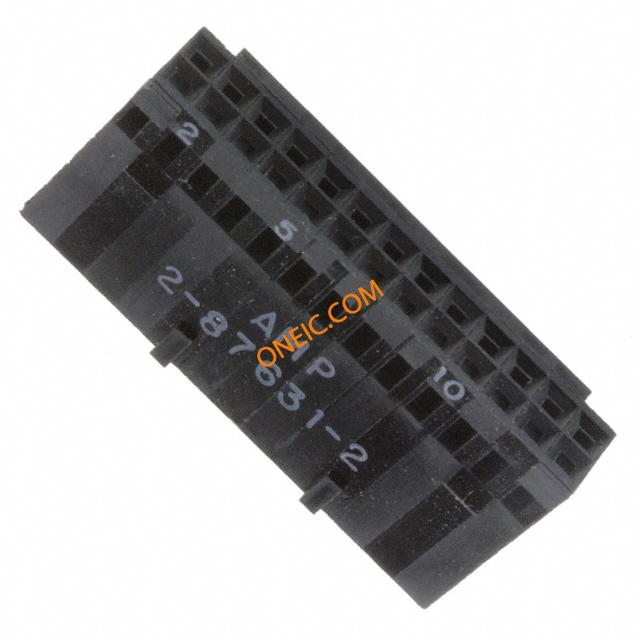

点击放大查看

2-87631-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 POL DUAL Headers & Wire Housings POLARIZED HSG 26 DBL detent latching Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;26;250VAC;3A;750V 26 MODIV HSG DR MRKD .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
海关税号	85369010

电气参数

额定电压	250 V	开关功能	Detent Latching
击穿电压	750V	最大额定电流	3 A
绝缘电阻	5000Megohms	最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	重量	0
包装方式	Bulk	导线线规	20-30 AWG
排间距	0.100" (2.54mm)	端接方式	CrimpSnap-In
触头类型	Female Socket	极化	Yes
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
排数	2	触头材料	Phosphor Bronze
壳体材料	Nylon	总长度	33.02 mm
主要材料	InterconnectSystem	连接器 - 电缆	Yes
插针孔直径	0.1"	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	26
接触件端接	Crimp	位数	26

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
应用细节	Board to Board	矩阵（列×行）	0.100x0.100in.

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

2-87631-2?RQPN=2-87631-2
