首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）2-87456-5

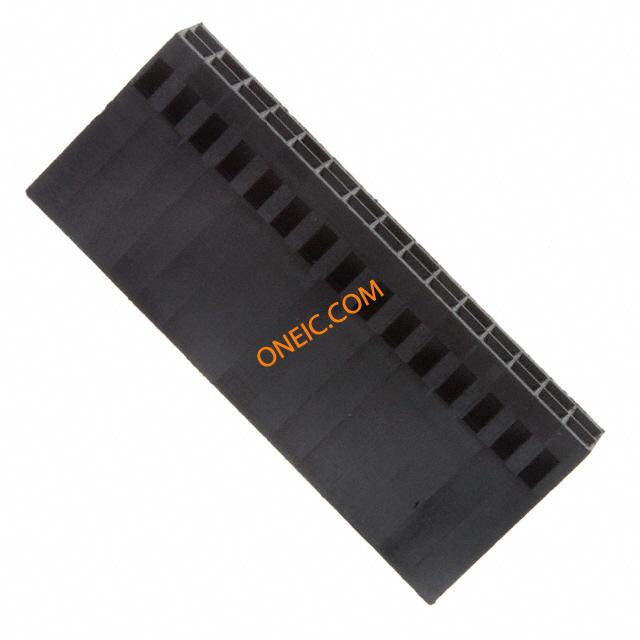

点击放大查看

2-87456-5

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 30POS .100 DUAL ROW Headers & Wire Housings MOD IV HSG DUAL 30P Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 30POS, 2.54MM CONNECTOR,HOUSING,RECEPTACLE,MODIV,30POSITION,DUALROW 30 MODIV HSG COMP DR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366930

电气参数

额定电压	250 VAC	最大额定电流	3/Contact A
绝缘电阻	5000 MOhms	最小供电电压	250VAC
连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	深度	15.24 mm
间距	0.100" (2.54mm)	高度	6.1 mm
重量	0	包装方式	Bulk
排间距	0.100" (2.54mm)	触头类型	Female Socket
外壳颜色	Black	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	:-
排数	2	触头材料	:-
壳体材料	Nylon	总长度	40.64 mm
主要材料	InterconnectSystem	触点数	30
接触件端接	Crimp	位数	30

产品信息

备注	Contacts Not Provided	类型	Receptacle Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	:Unstamped Housing	制造商全称	AMPMODU/MODIVSeries
产品子类型	Wire Housings	应用细节	Board-to-Board

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

1650916.pdf

在线文档

2-87456-5?RQPN=2-87456-5
