首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）2-87456-2

点击放大查看

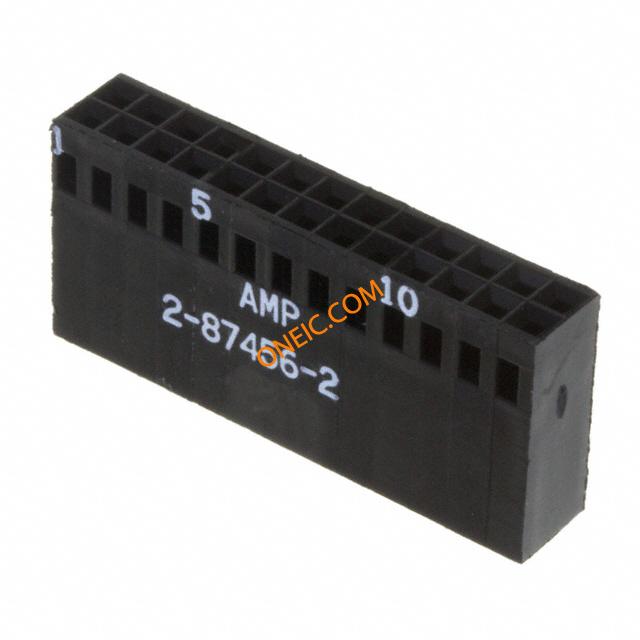

2-87456-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings HSG 2X13C F/H .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;26;250VAC;3A;750V 26 MODIV HSG DR MRKD .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
海关税号	85369010

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 VAC
击穿电压	750V	最大额定电流	3 A
绝缘电阻	5000 MOhms	最小供电电压	250VAC
连接器类型 - 电压输入	Receptacle

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.1 mm
长度	1.305in	重量	0.002
包装方式	Bulk	排间距	2.54 mm
端接方式	Crimp	触头类型	Female Socket
极化	No	外壳颜色	Black
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle	接触镀层	:-
安装样式	SMD/SMT	排数	2
触头材料	:-	壳体材料	Nylon
总长度	35.56 mm	主要材料	InterconnectSystem
连接器 - 电缆	Yes	插针孔直径	0.1"
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	26	接触件端接	Crimp
位数	26

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
应用细节	Board-to-Board	矩阵（列×行）	0.100x0.100in.

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

2-87456-2

PDF 文档

1650916.pdf

在线文档

2-87456-2?RQPN=2-87456-2
