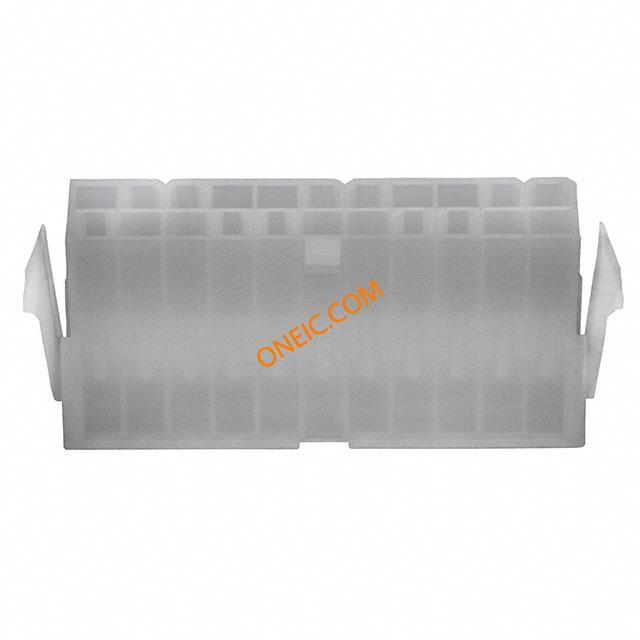

2-794953-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 22 POS 4.2mm Crimp ST Panel Mount VAL-U-LOK Series Connector System CONN PLUG 22POS PANEL MOUNT Pin & Socket Connectors PANEL MOUNT PLUG 22P Conn Housing PL 22 POS 4.2mm Crimp ST Panel Mount Product Highlights:HousingPlugNumber of Circuits = 22UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING PLUG,PANELMOUNT,VAL-U-LOK,22POS,DUALROW,UL94V-2 22P PM PLUG VAL-U-LOK V2 |
| 分类 |
商业参数
| 其他名称 | A30588 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Natural | 深度 | 23.9 mm |
| 间距 | 4.2 mm | 重量 | 0 |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 2 |
| 壳体材料 | Nylon | 主要材料 | InterconnectSystem |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 22 | 接触件端接 | Crimp |
| 位数 | 22 | 第一连接器安装类型 | :Panel |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | PE |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Housing |
| 电路数 | 22 | 适用产品/相关产品 | :VAL-U-LOK Series Connector System |
