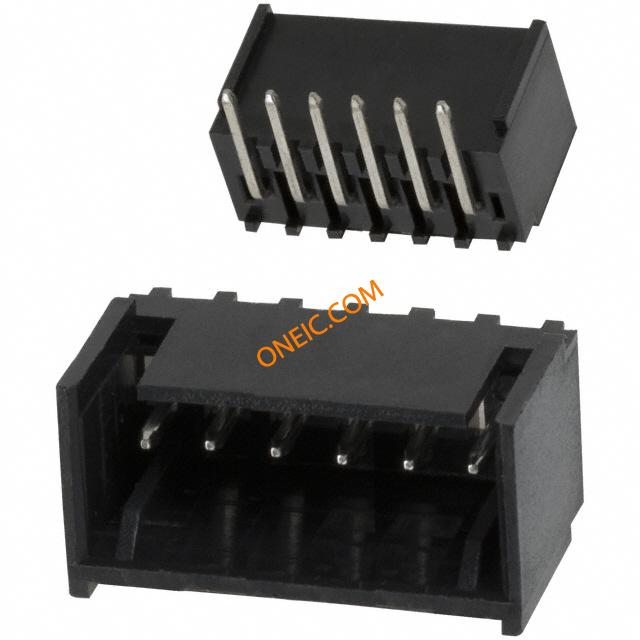

2-644803-6

点击放大查看

2-644803-6

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .100 TIN Headers & Wire Housings 06P SHRD HDR R/A Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 SHRD HDR ASSY RA FL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5 A

机械参数

颜色Black间距2.54 mm
高度10.41 mm [ .41 in ]长度17.37 mm [ .684 in ]
包装方式Bulk遮蔽类型Yes
壳体颜色黑色端接方式Solder
触头类型Male Pin第二连接器With
触点形状Square外壳颜色White
安装类型Right Angle连接器类型Header, Shrouded
接触镀层Tin触点时序Without
紧固类型Friction Lock安装样式不带
排数1壳体镀层Tin
外壳材料（壳体）摩擦锁连接器用途Header
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester安装特性Without
包装数量500面板安装类型Without
尺寸/外形0.64 [.025]端接样式Through Hole
第一触头极性Pin (Male)配接方向Without
触点数6端接表面处理不带
位数6后壳中断功能Without
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.200" (5.08mm)
触点材料 - 柱Copper Alloy端子柱长度3.30 [0.130]
接触镀层厚度3.81 – 6.35 µm [ 150 – 250 µin ]恢复后小径No
静电放电屏蔽不带直角致动器长度Rear
护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Shrouded Header连接器性别HDR
系列MTA-100可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]

文档与媒体

在线文档
2-644803-6

相关型号

3-641243-6

3-641243-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06 CIR MTA-100 CONN BLUE LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE 06 CIR MTA-100 CONN BLUE LF

¥6.9840
详情
3-644702-6

3-644702-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06P MTA100 CONN ASSY F/T LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED 06P MTA100 CONN ASSY F/T LF 06P MTA100 CONN ASSY F/T LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥6.9840
详情
4-644511-6

4-644511-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers 06P MTA100 CONN ASSY ON TAPE Headers & Wire Housings MTA100 CONN ASSY 06P ON TAPE MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.4350
详情
3-643814-6

3-643814-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 6w IDC closed end connector MTA-100 Headers & Wire Housings CLOSED WITH TABS 6P white tin 24 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM CONNECTOR,RECEPTACLE,MTA-100,6POSITION,CLOSEDEND,POLARIZED,WHITE Connector: wire-board; MTA-100; plug; female; PIN:6; polarized Cable socket, straight 6P, 3-643814-6, TE Connectivity TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY POL RIB

¥1.1419
详情
3-644540-6

3-644540-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA100 Headers & Wire Housings FEED THRU W/TAB 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM TE Connectivity MTA-100 系列 6路 2.54mm节距 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY F/T POL

¥1.1642
详情
3-641192-6

3-641192-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE Headers & Wire Housings REC 06P C/E 26AWG W/O TABS Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Assembly6 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY BLU LF

¥7.5600
详情

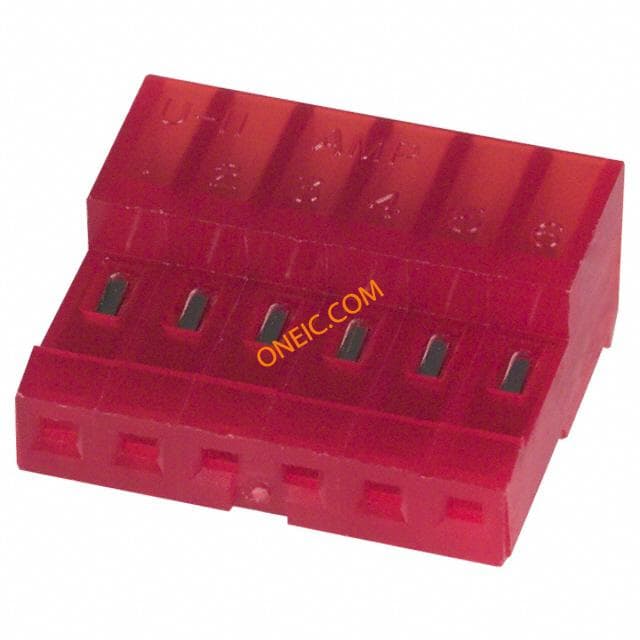

3-640440-6

3-640440-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA100 6 way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 6WAY WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,6pos. Connector: wire-board; MTA-100; plug; female; PIN:6; tinned; 2.54mm Cable socket, straight 6P, 3-640440-6, TE Connectivity TE Connectivity MTA-156 系列 6路 2.54mm节距 直角 电缆安装 母 IDC 连接器 06P MTA100 CONN ASSY 22AWG RED

¥0.9490
详情
3-643828-6

3-643828-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG MTA-100 Headers & Wire Housings 06P MTA100 CONN ASSY LF 06P MTA100 CONN ASSY LF 06P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.9520
详情
3-640471-6

3-640471-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 28AWG .100 GREEN Headers & Wire Housings 06P MTA100 CONN ASSY 06P MTA100 CONN ASSY TAPE LF

¥1.6718
详情
3-641239-6

3-641239-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE Headers & Wire Housings 06P MTA100 CONN ASSY BLU LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 Connectors6 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY BLU LF

¥6.9840
详情
3-641244-6

3-641244-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 28AWG .100 GREEN Headers & Wire Housings 06P MTA100 CONN ASSY GREN LF 06P MTA100 CONN ASSY GREN LF

¥7.1280
详情
3-641535-6

3-641535-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 6 POS RECPT 24 AWG CONN RECEPT 6POS 24AWG MTA100

¥1.1160
详情
3-644497-6

3-644497-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG MTA-100 Headers & Wire Housings 06P MTA100 CONN ASSY BLK LF 06P MTA100 CONN ASSY BLK LF

¥2.9520
详情
3-641190-6

3-641190-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED Headers & Wire Housings REC 06P C/E 22AWG W/O TABS Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY RED LF

¥7.7760
详情
643815-6

643815-6

te connectivity / amp

Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100 Headers & Wire Housings CLOSED WITH TABS 6P blue tin 26 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector6 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY POL RIB

¥1.1880
详情

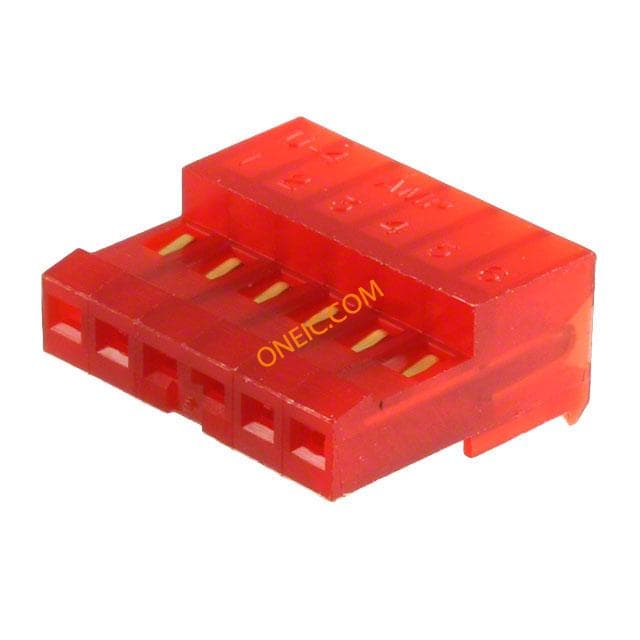

3-641237-6
