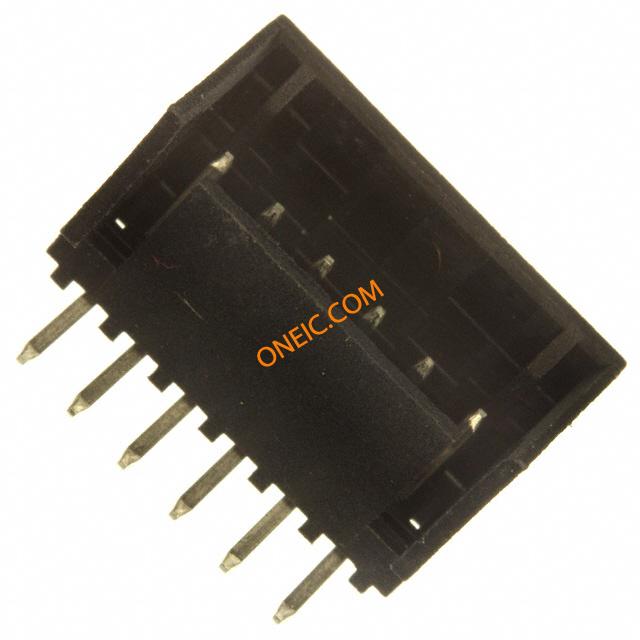

2-644488-6

点击放大查看

2-644488-6

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .100 TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:Header6 PositionsConnector Style = PlugContact Type = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector: wire-board; MTA-100; socket; male; PIN:6; shrouded; THT 06P MTA100 SHRD HDR F/L R/A SN
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5
连接器类型 - 电压输入shrouded

机械参数

颜色Black间距2.54 mm
高度10.41 mm [ .41 in ]长度17.37 mm [ .684 in ]
重量1 g包装方式Bulk
遮蔽类型Yes壳体颜色黑色
方向angled 90°端接方式Solder
触头类型Male Pin柱间距2.54mm
第二连接器With触点形状Square
外壳颜色White安装类型Right Angle
连接器类型Header, Shrouded接触镀层Matte Tin
触点时序Without紧固类型Friction Lock
安装样式不带排数1
壳体镀层Tin外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
触头材料Copper Alloy壳体材料Polyester
安装特性Without包装数量1
面板安装类型Without尺寸/外形0.64 [.025]
连接器 - 电缆socket端接样式插针
配接方向Without触点数6
端接表面处理不带位数6
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱3.3 mm [ .13 in ]安装孔直径带有
接触件表面处理 - 配合锡典型触点布局同轴
接触长度 - 配合0.200" (5.08mm)触点材料 - 柱Copper Alloy
端子柱长度3.30 [0.130]接触镀层厚度3.81 – 6.3 µm [ 150 – 250 µin ]
恢复后小径No触点材料 - 镀层tinned
静电放电屏蔽不带直角致动器长度Front
护套（绝缘）厚度1.27 µm, 50 µin第一连接器安装特征1x6

产品信息

SPG1类型Shrouded Header
连接器性别HDR可密封否
制造商全称AMP产品子类型MTA-100 Connectors
适配器系列MTA-100连接类型Printed Circuit Board
单元数量100加载位置数All
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.6 mm [ .063 in ]
