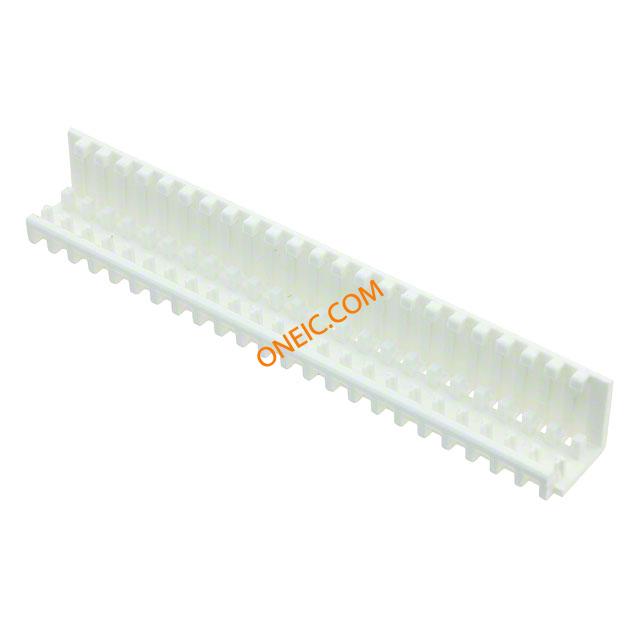

2-643075-4
| 制造商 | |
| 描述 | Connector Accessories 24 POS Strain Relief Closed End Covers Nylon White MTA, CST and SL Accessories CONN COVER STRAIN RELIEF 24POS Headers & Wire Housings 24P STR/REL COVER Connector Accessories 24 POS Strain Relief Closed End Covers Nylon White Product Highlights:Strain Relief CoversWithout Panel AttachmentCover Style = Closed EndNumber of Positions = 24Used For MTA-100 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP 24P MTA100 MOLDED COVER |
| 分类 |
商业参数
| 其他名称 | 26430754 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | White | 深度 | 8.76 mm |
| 间距 | 2.54 mm [ .100 in ] | 高度 | 8.64 mm |
| 包装方式 | Bulk | 连接器类型 | Cap (Cover), Strain Relief |
| 排数 | 1 | 壳体材料 | Nylon |
| 总长度 | 60.96 mm | 面板安装类型 | Without |
| 主要材料 | 尼龙 | 触点数 | 24 |
| 位数 | 24 | 兼容外壳尺寸（如TM-700等） | MTA-100 连接器 |
产品信息
| 类型 | Cover | 样式 | Closed End |
| 系列 | MTA-100 | 产品特性 | Closed End |
| 主要用途 | Closed End | 制造商全称 | AMP |
| 产品子类型 | Strain Relief Covers | 附件类型 | Cap (Cover), Strain Relief |
| 射频系列/标准 | 643075 | 适用产品/相关产品 | MTA-100 Connectors |
