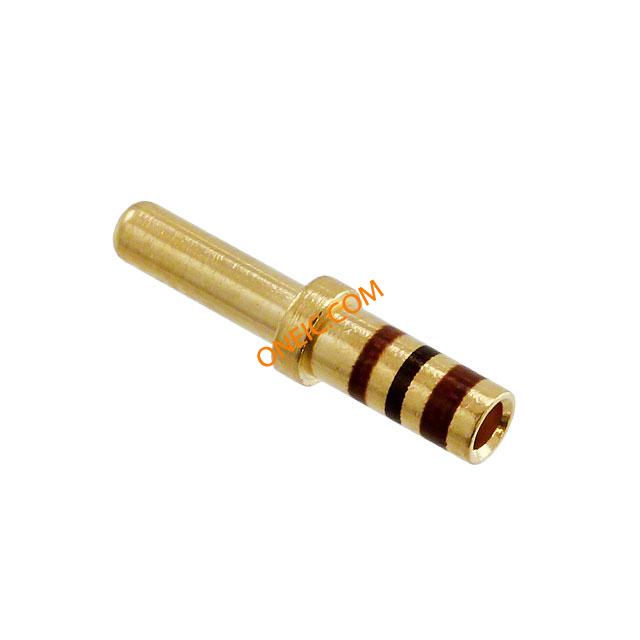

点击放大查看
2-592404-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Junction System Contacts Contact Size 20 Terminal Junction System (TJS) Module & Splice Assemblies CONN PIN SIZE 20 GOLD CRIMP Contact PIN Crimp ST Cable Mount Product Highlights:ContactSize = 20Length = 10.62 mmSearch Keywords:compact, pre-bussed, 5000-027-0020 |
| 分类 |
商业参数
| 零件号别名 | M39029 M39029/1-101 | 产品类别 | Junction System Contacts |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | MIL类型 | MIL-T-81714 |
机械参数
| 尺寸 | 20 | 颜色 | 褐色 |
| 深度 | 2.61 mm | 间距 | Not Required mm |
| 长度 | .418 mm [ 10.62 in ] | 包装方式 | Bulk |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触头类型 | Power | 安装类型 | Straight |
| 插针或插孔 | Pin | 端子尺寸 | 20 |
| 连接器类型 | Connector Rectangular | 接触镀层 | Gold Over Nickel |
| 安装样式 | Wire | 插入件材料 | 含铅铜, 黄铜 |
| 触头材料 | Brass/Copper Alloy | 壳体材料 | Not Required |
| 总长度 | 10.61 mm | 端接样式 | Crimp |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 连接器/触点类型 | 端子 | ||
产品信息
| 类型 | Signal | 连接器性别 | PIN |
| 系列 | Terminal Junction System | 产品子类型 | 端子接线系统组件 |
