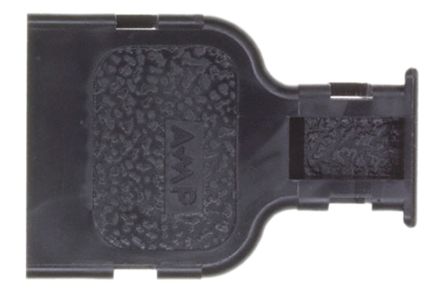

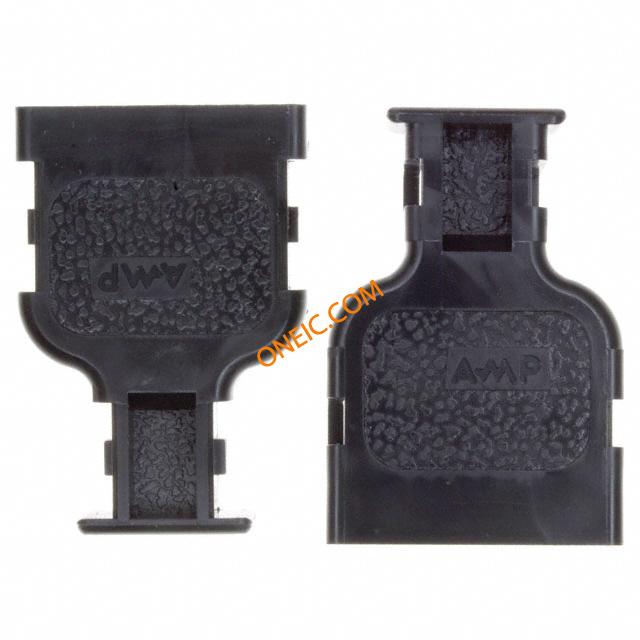

2-552079-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Cover Black 14 POS Bulk 2.16 [.085] Accessories and Hardware CONN COVER STR RLF 14POS 180DEG Headers & Wire Housings STRAIN RELIEF CVR 14 180 Snap-On Connector Accessories 2.16mm IEEE 488 14 POS Cover Kit Thermoplastic Black Bulk Connector Accessories 2.16mm IEEE 488 14 POS Cover Kit Thermoplastic Black Bulk Product Highlights:CoverCover Type = Strain ReliefSnap-On Cover/Strain Relief Retention Method180° Cable Exit AngleNumber of Positions = 14Search Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics STRAIN RELIEF COVER KIT, THERMOPLASTIC CHAMPIDC180degreeSnap-OnStrainReliefCover;14Position TE Connectivity 50路 10.92 mm 直径电缆 应力消除盖 , 使用于CHAMP 系列连接器 COVER KIT 180 DEG 14 POS BLK |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 重量 | 0.005 |
| 材料（通用） | Thermoplastic | 屏蔽 | Unshielded |
| 出线方向 | 180° | 电缆类型 | Round |
| 本体材料 | :Thermoplastic | 壳体材料 | Thermoplastic |
| 包装数量 | Bulk | 触点数 | 14 |
| 位数 | 14 | 外部壳体材料 | :Plastic |
| 电缆外径（最小） | 6.73 â 7.87 [0.265 â 0.310] | ||
产品信息
| 备注 | Strain relief cover cable diameter range is a guideline. The appropriate strain | 类型 | Cover |
| 硬件配件 | Strain Relief | 盖类型 | Strain Relief |
| 制造商全称 | AMP | 产品子类型 | Cover |
| 附件类型 | Two Piece Backshell | 连接方式 | Snap-On |
| 射频系列/标准 | 552079 | 有铅工艺兼容 | :Yes |
| 适用产品/相关产品 | :14 Position Champ 0.8 ^.031] Connectors | ||
