点击放大查看

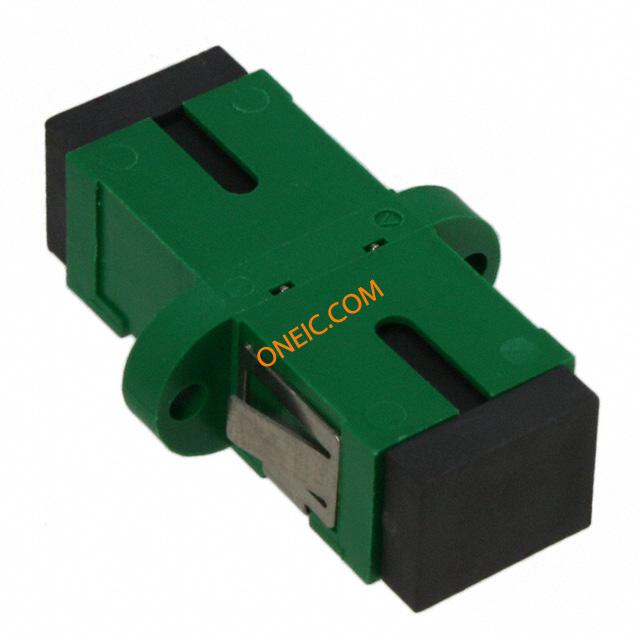

2-5502632-1
| 制造商 | |
| 描述 | Conn SC Coupler Single Mode/Multimode Simplex RCP/RCP ST Panel Mount 0.2dB Bulk Fiber Optic Connectors RECEPT BLKHD SC SS GREEN W/DC SC Connectors CONN RCPT COUPLING SIMPLEX GREEN Conn SC Coupler Single Mode/Multimode Simplex RCP/RCP ST Panel Mount 0.2dB Bulk Product Highlights:Coupling ReceptacleMultimode, SinglemodeFiber Optic Connector Type = SimplexPlastic Housing MaterialHousing Color = GreenSearch Keywords:fiber optic, Single Fiber, pre-radiused ferrules, JIS C-5973, TIA 568B, Fiber Channel, TIA FOCIS-3. |
| 分类 |
商业参数
| 产品 | Adapters | 产品类别 | Fiber Optic Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 插入损耗 | 0.2 dB | ||
机械参数
| 颜色 | Green | 深度 | 27.65 mm |
| 高度 | 22.35 mm | 直径 | Not Required mm |
| 包装方式 | Bulk | 基体材料 | Plastic |
| 外壳颜色 | Green | 安装类型 | Panel Mount |
| 法兰特征 | No | 安装样式 | Panel |
| 套圈材料 | Metal | 壳体材料 | Plastic |
| 总长度 | 12.85 mm | 面板安装类型 | Flanged |
产品信息
| 工作模式 | Single Mode/Multimode | 类型 | SC Coupler |
| 连接器性别 | RCP/RCP | 产品特性 | Dust Cap |
| 光纤类型 | Simplex | 端口样式 | Simplex |
| 制造商全称 | AMP | 产品子类型 | Coupling Receptacle |
| 附件类型 | Coupling Receptacle | 单工/双工 | Simplex |
| 转换端（适配器端） | SC Receptacle | 转换自（适配器端） | SC Receptacle |
环境参数
| 保护功能 | With | 工作温度 | -40C to 85C |
文档与媒体
