点击放大查看

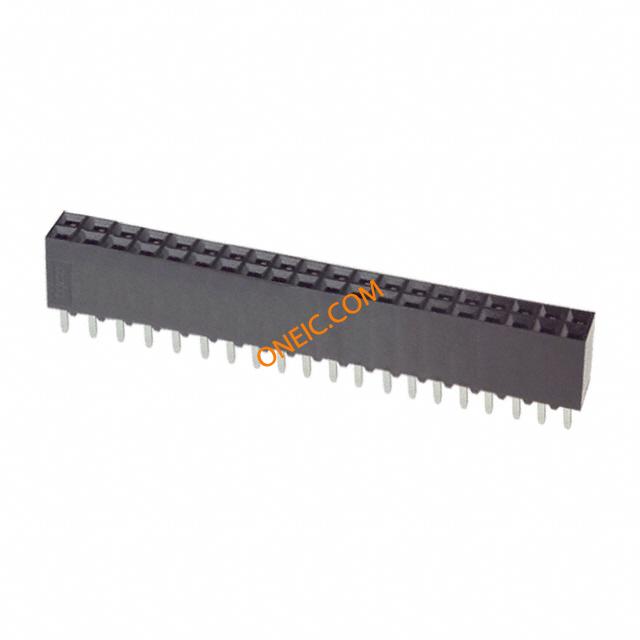

2-534206-0

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 40POS .100 VERT DUAL Headers & Wire Housings REC 2X20P VRT T/H Conn Socket Strip SKT 40 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 40Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, CONNECTOR, RECEPTACLE, THT, 40WAY ReceptacleAssembly;40;Dual;2;750;12Milliohms;Glass-FilledPolyester 40 MODII VRT DR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	11

合规参数

RoHS	Contains lead / RoHS non-compliant	标准	ULListed,CSACertified
海关税号	85366930	认证机构	CSA,UL
材料阻燃等级	UL94V-0

电气参数

接触电阻	12 mohm	最大额定电流	2 A
直流开关电压	750	触点额定电流	2

机械参数

颜色	Black	深度	5.03 mm
间距	2.54 mm	高度	8.64 mm
重量	0.02	镀层	Tin-LeadoverNickel(Solder)
包装方式	Tube	出线方向	LowProfile
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	引脚长度（针脚）	0.115"
外壳颜色	Black	安装类型	Through Hole
行程角度	Straight	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	2	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	50.8 mm
主要材料	InterconnectSystem	插针孔直径	0.1"
端接样式	Through Hole	触点数	40
接触件端接	:Through Hole Vertical	位数	40
触点镀层	Gold(30)	柱体长度（配合）	0.115in.
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	AMPMODU MOD II	制造商全称	AMPMODU/MODIISeries
产品子类型	Receptacles / Sockets - PCB	矩阵（列×行）	0.100x0.100in.
加载位置数	All

环境参数

工作温度

- 65 C to + 105 C
