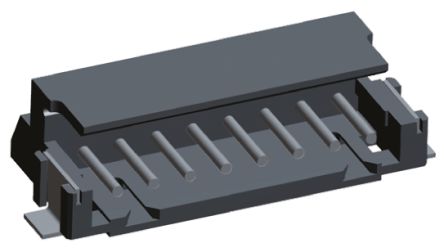

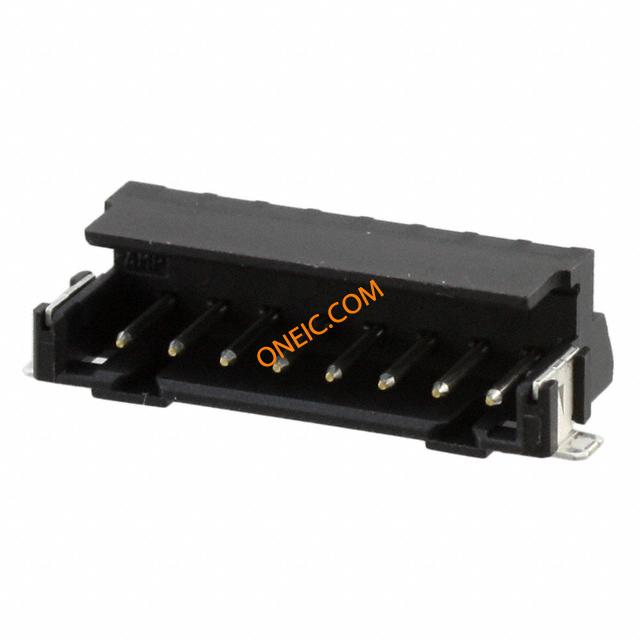

2-292173-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 8 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 8POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Conn Shrouded Header HDR 8 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = Header8 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Headerplug,box,SMT,2mm,8way,R/A,CT TE Connectivity AMP CT 系列 2mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 CT BOX HDR H SMT 8P O/TAPE BLA |
| 分类 |
商业参数
| 其他名称 | A100987CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | CSA, UL |
| 无铅定义 | Reflow solder capable to 245°C | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | UL 94V-0, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 125 V ac/dc | 开关功能 | No |
| 供电电压 | 125 | 接触电阻 | 20 mohm |
| 最大额定电流 | 2A | 最小供电电压 | 125VDC/125VAC |
| 连接器类型 - 电压输入 | 圆柱体 | ||
机械参数
| 颜色 | Black | 深度 | 10.4 mm |
| 间距 | 2 mm | 形状 | 矩形 |
| 宽度 | 9 mm [ .354 in ] | 高度 | 5.8 mm |
| 长度 | 17.8 mm [ .7008 in ] | 包装方式 | Tape & Reel (TR) |
| 尾部类型 | Inline | 壳体颜色 | 黑色 |
| 电缆类型 | 分离式导线 | 导线线规 | 28 – 22 |
| 方向 | 直角 | 端接方式 | Solder |
| 触头类型 | Male Pin | 触点形状 | Round |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Crimp, MT (Mass Termination) | 接触镀层 | Tin |
| 触点时序 | With | 安装样式 | Surface Mount |
| 排数 | 1 | 连接器用途 | Header |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Polyphenylene Sulfide (PPS) | 总长度 | 2.00 [0.079] |
| 安装特性 | 焊钉 | 包装数量 | Tape Mounted |
| 面板安装类型 | Without | 端接排数 | 焊接 |
| 端接样式 | 插针 | 排针方向 | Box |
| 触点数 | 8 | 端接表面处理 | 带有 |
| 接触件端接 | Locking Lance | 位数 | 8 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 典型触点布局 | 同轴 |
| 接触长度 - 配合 | 0.165" (4.19mm) | 表面贴装焊盘尺寸 | Internal |
| 端子柱长度 | 4.2 mm [ .165 in ] | 接触镀层厚度 | 1 – 2 µm [ 39.37 – 78.73 µin ] |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 2-292173 | 覆盖范围 | 覆盖 |
| 产品特性 | Solder Retention | 可密封 | 否 |
| 卷轴尺寸 | 500 | 产品子类型 | Connector |
| 连接类型 | Printed Circuit Board | 加载位置数 | All |
环境参数
| 工作温度 | -30C to 105C | 封装热阻 | .8 mm [ .031 – .063 in ] |
