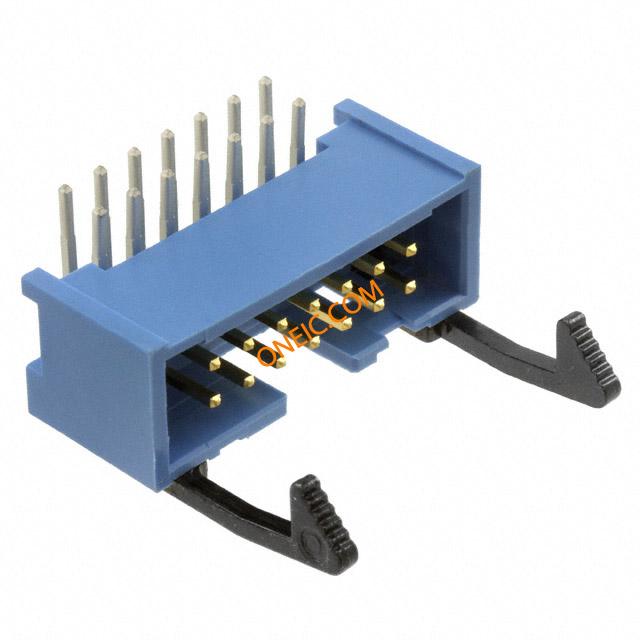

2-1761607-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 14POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings LPRO HDR 14P RA LG LAT Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 14WAY 14waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 14路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 14P RA LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 20 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 击穿电压 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | :1Gohm |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Blue | 深度 | :10.3mm |
| 间距 | 2.54 mm | 宽度 | :25.4mm |
| 长度 | :9.2mm | 重量 | 0.002 |
| 材料（通用） | :Glass reinforced thermo plastic | 包装方式 | Tube |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center, Military | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Blue |
| 安装类型 | Right Angle | 连接器类型 | Pin Header |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock/Eject Hooks |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 外形（宽 x 高） | Low |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 3.81 [0.150] | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 14 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 14 | 安装孔直径 | :0.9mm |
| 接触长度 - 配合 | 0.237" (6.02mm) | 端子柱长度 | 2.60 [0.102] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP LATCH | 极性 | :Bump/Clip |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :200 | 温度额定值 | Standard |
| 工作温度 | -65C to 105C | ||
