2-1586041-2

制造商	TE Connectivity Ltd.

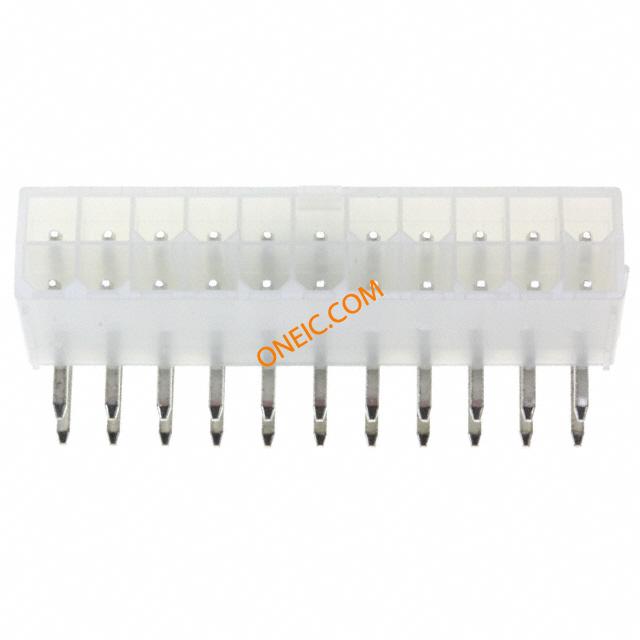

描述	Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 22POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 22P Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 22UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,22POS,DUALROW,UL94V-2,W/OPEGS 22P VAL-U-LOK R/A HDR V2
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

产品类别	Pin & Socket Connectors	标准包装数量	Trays
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
零件状态	E28476	无铅定义	Wave solder capable to 240Â°C
CSA档案号	208567	标准编号	CSA, UL
RoHS/ELV合规状态	RoHS compliant, ELV compliant	UL阻燃等级	UL 94V-2
认证机构标志	否	材料阻燃等级	UL 94V-2

电气参数

额定电压	600 V	供电电压	600
中心频率	带有	最大额定电流	9 A

机械参数

间距	4.2 mm	宽度	13 mm [ .51 in ]
高度	9.8 mm [ .39 in ]	长度	47.4 mm [ 1.8661 in ]
密封型	Not Sealed	包装方式	Bulk
排间距	0.165" (4.20mm)	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole
连接器类型	Header, Shrouded	接触镀层	Tin
紧固类型	Locking Ramp	安装样式	Through Hole
引脚数	22	排数	Dual
封装形式	Plug	壳体材料	Nylon
包装数量	80	面板安装类型	通孔 - 焊接
主要材料	InterconnectSystem	端接样式	Solder
第一触头极性	Socket (Female)	触点数	22
绝缘直径	1.2 – 3.1 mm [ .047 – .122 in ]	位数	22
安装孔直径	带有	接触件表面处理 - 配合	锡
典型触点布局	直插式, 矩阵	端子柱长度	3.6 mm [ .14 in ]
接触镀层厚度	80 µm [ 2.03 µin ]

产品信息

类型	Power	连接器性别	HDR
系列	PE	制造商全称	VAL-U-LOK
产品子类型	Pin Header	电路数	22
选择性装载	No	应用细节	Power
装配配置	Without	加载位置数	All

环境参数

测试温度	标准件 - 非灼热丝	工作温度	-40 – 105 °C [ -40 – 221 °F ]
封装热阻	.063 mm [ 1.6 in ]

文档与媒体

在线文档

2-1586041-2?RQPN=2-1586041-2
