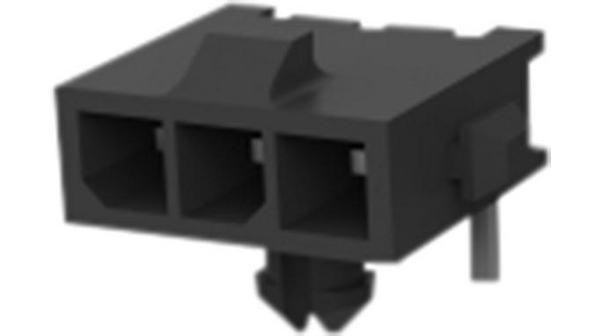

2-1445055-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 3POS R/A TIN TE Connectivity MATE-N-LOK Series 3mm Pitch 3 Way Right Angle Heavy Duty Power Connector, Solder Termination, 5A Pin & Socket Connectors HDR ASSY 3 POS R/A SINGLE ROW TIN Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:ConnectorConnector Type = Header - PinThrough Hole Contact Termination Type3 PositionsNumber of Rows = 1Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADER, RIGHT ANGLE, 1ROW, 3WAY 3WS/ROWPINHEADERR/A Pin header Pitch3 mm Poles 3 Contact DesignMale MATE-N-LOK, 2-1445055-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 3路 直角 PCB 针座, 焊接端接, 5A , 通孔 MICRO MNL HDR ASSY S/ROW LF |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - Micro MATE-N-LOK Series | 额定电压 | 250 V ac |
| 接触电阻 | :20mohm | 击穿电压 | :1500V |
| 最大额定电流 | 5A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 8.92 mm |
| 间距 | 3 mm | 高度 | 5.67 mm |
| 重量 | 0.049 | 材料（通用） | :Nylon |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :3mm |
| 极化 | Without | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Matte Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through-Hole | 排数 | Single |
| 触头材料 | Brass | 壳体材料 | High Temperature Nylon |
| 总长度 | 13.14 mm | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 触点数 | 3 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 3 | 中心触点材料 | 3.00 [0.118] |
| 接触镀层厚度 | 100µin (2.54µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | MATE-N-LOK | 产品特性 | Board Lock |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Header Assembly | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
文档与媒体
相关型号
1445022-3
te connectivity / amp
Conn Housing RCP 3 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 3POS MATE-N-LOK 3 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 3P Conn Housing RCP 3 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 3Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;Nylon;Receptacle;Black;3;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 3 MATE-N-LOK Micro, 1445022-3, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 3 路 直 母 连接器外壳 MICRO MNL RFECEPT HSG SINGLE R
