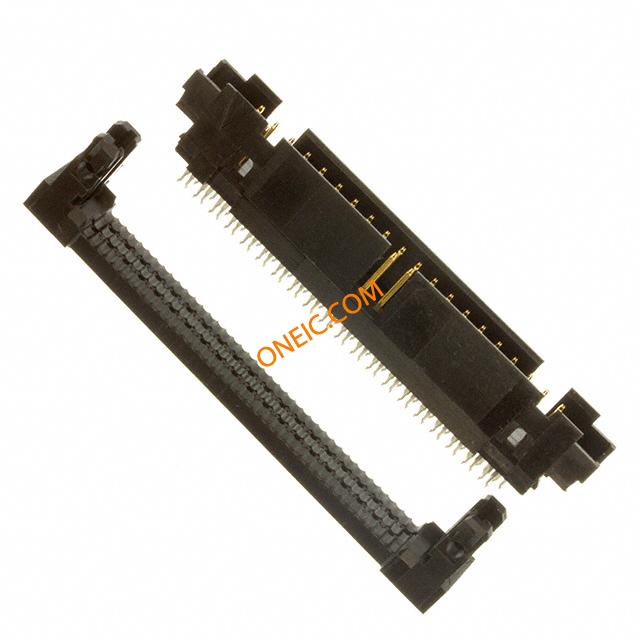

2-111446-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 40POS 30AU NO LATCH Headers & Wire Housings 040 UNIV I/O 30DP NO EARS Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 40PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 40WAY 040 UNIV I/O 30DP NO EARS |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Universal I/O Series | 接触电阻 | :15mohm |
| 击穿电压 | :1000V | 最大额定电流 | 1 A |
| 触点额定电流 | :1A | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.008 | 包装方式 | Tray |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Male Pin |
| 引脚间距 | :1.27mm | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | Universal I/O |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 封装形式 | :Black Thermoplastic |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 安装特性 | Without | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Pin (Male) |
| 配接方向 | Without | 触点数 | 40 |
| 接触件端接 | :IDC / IDT | 位数 | 40 |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | :28AWG |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | PL |
| 系列 | AMP-LATCH | 产品特性 | Feed Through |
| 产品子类型 | Connectors | 连接类型 | Ribbon Cable |
环境参数
| 插拔次数 | :150 | 工作温度 | :105°C |
